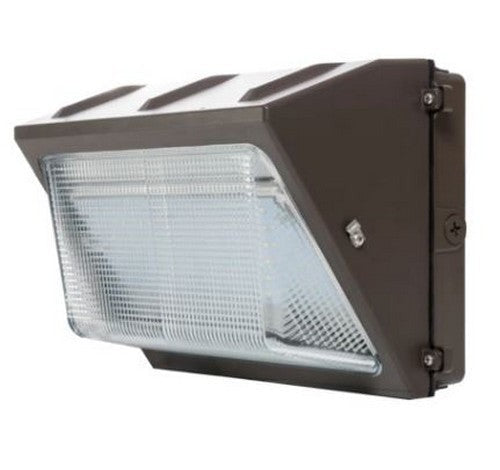

Westgate 80W Max 3000K-5700K 9000LM Max LED Tunable Non-Cutoff Wall Pack Dark Bronze Finish WMX-MCTP-D
Westgate 80W Max 3000K-5700K 9000LM Max LED Tunable Non-Cutoff Wall Pack Dark Bronze Finish WMX-MCTP-D
SKU:WMX-MCTP-D
Couldn't load pickup availability
Product Overview
The Westgate WMX-MCTP-D LED Tunable Non-Cutoff Wall Pack is an exterior LED wall-mounted lighting fixture used for commercial building exteriors, adjustable site lighting, loading docks.
It is specified with wattage: 80W Max, light output: 9000LM Max, color temperature: 3000K-5700K, voltage: 120-277V AC 60Hz, and a Dark Bronze finish for product identification.
The WMX tunable design supports a 0-80W power range and 0-9000LM lumen range when paired with the required remote control.
Key Features
- Wattage: 80W Max for selecting fixture output and circuit loading.
- Light output: 9000LM Max for comparing brightness within the same wall pack family.
- Color temperature: 3000K-5700K for matching warm, neutral, or cool exterior lighting appearance.
- Voltage: 120-277V AC 60Hz for confirming electrical compatibility before installation.
- Adjustable power range: 0-80W adjustable with remote control for remote-controlled output setup.
- Adjustable lumen range: 0-9000LM adjustable with remote control for tuning site brightness after installation.
- Housing: Die-cast aluminum with powder coat finish for matching exterior fixture construction requirements.
- UPC: 845060052596 and SKU: WMX-MCTP-D for purchasing, receiving, and inventory control.
Technical Specifications
| Brand | Westgate |
| Model / SKU | WMX-MCTP-D |
| Product Type | LED Tunable Non-Cutoff Wall Pack |
| Series | WMX-MCTP |
| Voltage | 120-277V AC 60Hz |
| Wattage | 80W Max |
| Power Range | 0-80W adjustable with remote control |
| Lumens | 9000LM Max |
| Lumen Range | 0-9000LM adjustable with remote control |
| Color Temperature | 3000K-5700K |
| Efficacy | 110 LPW |
| Finish | Dark Bronze |
| Material / Housing | Die-cast aluminum with powder coat finish |
| Lens / Optics | High transparent tempered glass |
| LED Chip | Lumileds Lexeon 3030 high flux LED |
| Mounting / Entry | Four 1/2" hubs: top, sides, and rear |
| Warranty | 7 years |
| UPC | 845060052596 |
| Manufacturer Part Number | WMX-MCTP-D |
Applications
- Commercial building exteriors
- Adjustable site lighting
- Loading docks
- Doorways
- Pathways
- Parking areas
- Retrofit wall pack projects
- Projects needing wattage and CCT flexibility
Compatibility and Installation Notes
Confirm the installed voltage, mounting surface, conduit entry, fixture size, color temperature, location rating, and control requirements before ordering. Installation should follow Westgate instructions, project drawings, and local electrical code requirements.
The listed power and lumen ranges require the matching remote control for adjustment; order the remote separately when it is not already included in the project package.
