Westgate

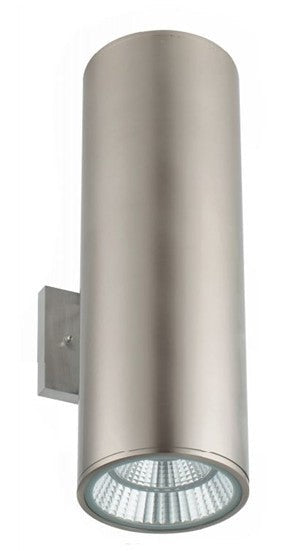

Westgate 40W Multi-CCT LED Up Down Wall Cylinder Brushed Nickel WMCL-UDL-MCT-BN
Westgate 40W Multi-CCT LED Up Down Wall Cylinder Brushed Nickel WMCL-UDL-MCT-BN
SKU:WMCL-UDL-MCT-BN
Couldn't load pickup availability
Product Overview
The Westgate WMCL-UDL-MCT-BN LED up and down wall cylinder is a commercial architectural wall fixture used for up and down architectural lighting on facades, entries, columns, and exterior wall surfaces. It is specified with 40W power, 3200LM output, 3000K/4000K/5000K color temperature, giving contractors row-level product data for fixture selection, replacements, and project purchasing.
The electrical profile lists 120~277V AC input, and the fixture family data supports compatibility checks before installation.
Key Features
- Model-specific wattage: 40W.
- Model-specific light output: 3200LM.
- Color temperature selection: 3000K/4000K/5000K.
- The fixture distributes light from both ends to create vertical architectural emphasis on wall surfaces.
- The multi-CCT selector supports field choice of warm, neutral, or cool white output.
- The 120~277V input range supports broader commercial electrical layouts than 120V-only wall lights.
- The die-cast aluminum and glass body is built for exterior wet-location use.
Technical Specifications
| Brand | Westgate |
| Model / SKU | WMCL-UDL-MCT-BN |
| Product Type | LED Up Down Wall Cylinder |
| Voltage | 120~277V AC |
| Wattage | 40W |
| Lumens | 3200LM |
| Color Temperature | 3000K/4000K/5000K |
| Finish | Brushed Nickel |
| Material | Die-cast aluminum and glass |
| Mounting Type | Wall mount |
| Location Rating | Wet Location |
| UPC | 845060052336 |
| Light Output | Up and down illumination |
| Wattage Split | 20W per end |
| Efficacy | 80 LPW |
| Power Factor | >0.95 |
| THD | <20% |
| Ambient Temperature | -68°F to 104°F |
| Warranty | 7 Years |
Applications
- Commercial facades
- Hospitality entrances
- Exterior columns
- Retail exterior walls
- Architectural accent lighting
Compatibility and Installation Notes
Confirm the required voltage, mounting method, control option, color temperature, and location rating before ordering or installing this item.
Installation should be completed by qualified personnel and checked against the project drawings, fixture schedule, transformer capacity where applicable, and local electrical code requirements. For replacement work, compare the existing fixture wattage, lumen output, mounting footprint, control type, and finish against the listed SKU before purchase.
