Westgate 50W 5000K 4400LM LED Semi-Cutoff Vandal-Proof Wall Pack LTW-50CW
Westgate 50W 5000K 4400LM LED Semi-Cutoff Vandal-Proof Wall Pack LTW-50CW
SKU:LTW-50CW
Couldn't load pickup availability
Product Overview

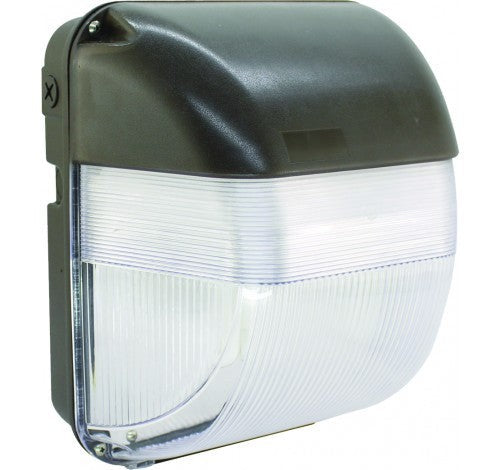

The Westgate LTW-50CW LED semi-cutoff vandal-proof wall pack is an exterior security fixture used to light alleys, loading docks, pathways, and parking areas.
It is specified with voltage 120-277VAC 60Hz, wattage 50W, lumens 4400LM, color temperature 5000K. Construction details include material Die-cast aluminum with powder coat finish and lens Vandal-resistant polycarbonate front housing with prismatic lens.
Key Features
- Semi-cutoff fixture provides 4400LM at 50W for controlled exterior wall lighting.
- Universal input supports 120-277VAC service in commercial and facility applications.
- Prismatic polycarbonate lens and front housing support vandal-resistant wall-pack construction.
- Four 1/2 inch knockouts allow wiring entry from the top, sides, and back.
- Beam spread is 90° x 110° for wall-mounted area coverage.
- Rated life is 70,000 hours with IP54 wet-location protection.
Technical Specifications
| Brand | Westgate |
| Model / SKU | LTW-50CW |
| Product Type | LED Semi-Cutoff Vandal-Proof Wall Pack |
| Voltage | 120-277VAC 60Hz |
| Wattage | 50W |
| Lumens | 4400LM |
| Efficacy | 88 LPW |
| Color Temperature | 5000K |
| Power Factor | >0.95 |
| Beam Angle | 90° x 110° |
| Finish | Dark Bronze |
| Material | Die-cast aluminum with powder coat finish |
| Lens | Vandal-resistant polycarbonate front housing with prismatic lens |
| Mounting Type | Wall mount |
| Operating Temperature | -4°F to 104°F |
| Location Rating | Wet Location |
| IP Rating | IP54 |
| Certifications | UL Listed |
| Warranty | 7 years |
| UPC | 845060045604 |
| Manufacturer Part Number | LTW-50CW |
Applications
- Alleys
- Loading docks
- Doorways
- Pathways
- Parking areas
- HID wall pack replacement
Compatibility and Installation Notes
Verify fixture size, conduit entry direction, and wall-mount location before installation. Select this series where semi-cutoff distribution and a vandal-resistant lens are required.
