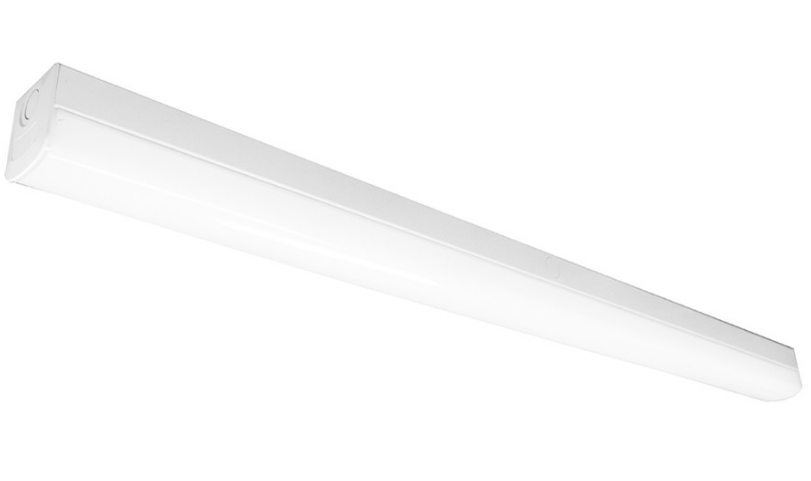

Westgate 4FT 29W/34W/39W/46W 130LM/W 3500K/4000K/5000K White Finish High-Lumen Adjustable LED Linear Strip Light LSS-4FT-46W-MCTP
Westgate 4FT 29W/34W/39W/46W 130LM/W 3500K/4000K/5000K White Finish High-Lumen Adjustable LED Linear Strip Light LSS-4FT-46W-MCTP
SKU:LSS-4FT-46W-MCTP
Couldn't load pickup availability
Product Overview
The Westgate LSS-4FT-46W-MCTP high-lumen adjustable led linear strip light is a lighting fixture used for corridors, stairwells and related commercial lighting installations. It is specified with wattage 29W/34W/39W/46W, color temperature 3500K/4000K/5000K, voltage 120-277VAC 60Hz, efficacy 130LM/W, ip rating IP44, dimming 0-10V dimming and Westgate item number LSS-4FT-46W-MCTP for exact product identification. The LSS High-Lumen CCT & Power Adjustable Linear Strip data supports fixture schedule review, replacement planning, and purchase-order validation.
Key Features
- Voltage rating: 120-277VAC 60Hz for matching the fixture to the branch circuit or lighting control layout.
- Wattage: 29W/34W/39W/46W for load calculations, fixture schedules, and energy-use comparison.
- Color temperature: 3500K/4000K/5000K for matching the required appearance across the project.
- Efficacy: 130LM/W for evaluating light output relative to input power.
- Power factor: >0.99 for commercial fixture specification and electrical planning.
- Color rendering: CRI ≥ 80 for interior visibility and fixture schedule matching.
- Ingress rating: IP44 for matching the fixture to the intended indoor or damp-area environment.
Technical Specifications
| Brand | Westgate |
| Model / SKU | LSS-4FT-46W-MCTP |
| Product Type | High-Lumen Adjustable LED Linear Strip Light |
| Fixture Series | LSS High-Lumen CCT & Power Adjustable Linear Strip |
| Nominal Length / Size | 4FT |
| Voltage | 120-277VAC 60Hz |
| Wattage | 29W/34W/39W/46W |
| Efficacy | 130LM/W |
| Color Temperature | 3500K/4000K/5000K |
| Power Factor | >0.99 |
| CRI | CRI ≥ 80 |
| Finish | White |
| Housing / Material | Cold-rolled steel housing |
| Lens | Shatter-resistant polycarbonate frosted lens |
| Mounting Type | Ceiling mount or suspended mount |
| Location Rating | Damp locations |
| IP Rating | IP44 |
| Dimming | 0-10V dimming |
| Operating Temperature | -4°F to 122°F |
| Rated Life | 50,000 hours |
| Warranty | 5-year warranty |
| UPC | 845060058949 |
Applications
- Corridors
- Stairwells
- Schools
- Hospitals
- Utility areas
- Public rooms
- Industrial maintenance
Compatibility and Installation Notes
Before installation, confirm voltage 120-277VAC 60Hz, wattage 29W/34W/39W/46W, color temperature 3500K/4000K/5000K, mounting type Ceiling mount or suspended mount, location rating Damp locations. Verify fixture compatibility with the ceiling, wall, suspension hardware, controls, branch circuit, and local code requirements.
Installation should be completed by a qualified electrician using the applicable Westgate instructions and approved field wiring practices.
