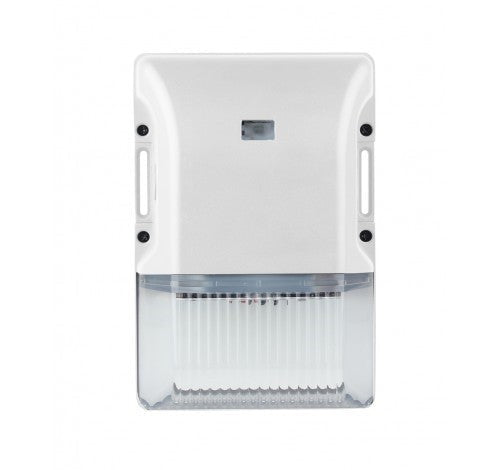

Westgate 20W 5000K 2500LM LED Small Non-Cutoff Wall Pack White LESW-20W-50K-P-WH
Westgate 20W 5000K 2500LM LED Small Non-Cutoff Wall Pack White LESW-20W-50K-P-WH
SKU:LESW-20W-50K-P-WH
Couldn't load pickup availability
Product Overview
The Westgate LESW-20W-50K-P-WH LED small non-cutoff wall pack is an exterior wall-mounted fixture used for site lighting, doorway lighting, pathways, and parking area illumination.
It is specified with voltage 120VAC 60Hz, wattage 20W, lumens 2500LM, color temperature 5000K. Construction details include material Aluminum housing with outdoor powder coat and lens High-transmittance PC lens, anti-UV and fire resistant.
Key Features
- LED output is rated at 20W and 2500LM for small wall-pack applications.
- Color temperature is 5000K, suitable for bright exterior visibility.
- Electrical input is 120VAC 60Hz for line-voltage installations.
- Optical lens is high-transmittance PC with anti-UV and fire-resistant construction.
- Fixture uses an aluminum housing with outdoor powder coat for wall-mounted exterior service.
- Rated life is 70,000 hours with IP54 wet-location protection.
Technical Specifications
| Brand | Westgate |
| Model / SKU | LESW-20W-50K-P-WH |
| Product Type | LED Small Non-Cutoff Wall Pack With Photocell |
| Voltage | 120VAC 60Hz |
| Wattage | 20W |
| Lumens | 2500LM |
| Efficacy | 125 LM/W |
| Color Temperature | 5000K |
| CRI | CRI ≥ 80 |
| Power Factor | >0.9 |
| Finish | White |
| Material | Aluminum housing with outdoor powder coat |
| Lens | High-transmittance PC lens, anti-UV and fire resistant |
| Mounting Type | Wall mount |
| Operating Temperature | -40°F to +113°F |
| Location Rating | Wet Location |
| IP Rating | IP54 |
| Certifications | ETL Listed |
| Warranty | 7 years |
| UPC | 845060048902 |
| Manufacturer Part Number | LESW-20W-50K-P-WH |
Applications
- General site lighting
- Loading docks
- Doorways
- Pathways
- Parking areas
- Exterior wall replacement projects
Compatibility and Installation Notes
Use this model only where the project voltage matches the fixture input. Confirm wall mounting conditions, wet-location suitability, lighting layout, and local code requirements before installation.
