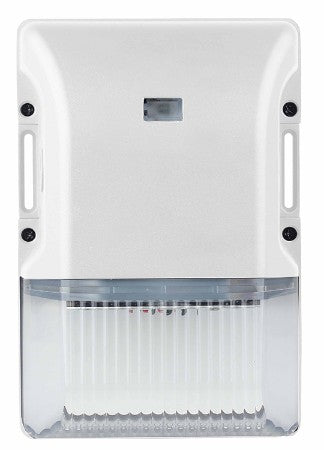

Westgate 15W/20W/30W Tunable LED Wall Pack 3000K/4000K/5000K White LESW-15-30W-MCTP-P-WH
Westgate 15W/20W/30W Tunable LED Wall Pack 3000K/4000K/5000K White LESW-15-30W-MCTP-P-WH
SKU:LESW-15-30W-MCTP-P-WH
Couldn't load pickup availability
Product Overview
The Westgate LESW-15-30W-MCTP-P-WH LED tunable non-cutoff wall pack is an exterior building light used for entrances, walkways, loading areas, and parking perimeter illumination.
It is specified with voltage 120-277V AC 60Hz, wattage 15W / 20W / 30W, lumens 4050LM / 4410LM / 4110LM, color temperature 3000K / 4000K / 5000K. Construction details include material Die-cast aluminum back plate with polycarbonate housing and lens and lens Polycarbonate non-cutoff optics.
Key Features
- Multi-power setting supports 15W / 20W / 30W output selection inside the fixture.
- Field-selectable CCT provides 3000K / 4000K / 5000K light color options for exterior projects.
- Integrated removable photocell uses 120V dusk-to-dawn control with a maximum 3 second response time.
- Wide input range supports 120-277V AC service for commercial branch circuits.
- Polycarbonate housing and lens support non-cutoff distribution for broader exterior wall coverage.
- Fixture is listed for Wet Location use with IP65 ingress protection.
Technical Specifications
| Brand | Westgate |
| Model / SKU | LESW-15-30W-MCTP-P-WH |
| Product Type | LED Tunable Non-Cutoff Wall Pack With Photocell |
| Voltage | 120-277V AC 60Hz |
| Wattage | 15W / 20W / 30W |
| Lumens | 4050LM / 4410LM / 4110LM |
| Efficacy | 135 / 147 / 137 LPW |
| Color Temperature | 3000K / 4000K / 5000K |
| CRI | CRI ≥ 70 |
| Power Factor | >0.90 |
| Beam Angle | 100° |
| Finish | White |
| Material | Die-cast aluminum back plate with polycarbonate housing and lens |
| Lens | Polycarbonate non-cutoff optics |
| Mounting Type | Wall mount |
| Operating Temperature | -40°F to +113°F |
| Location Rating | Wet Location |
| IP Rating | IP65 |
| Warranty | 7 years |
| UPC | 845060074628 |
| Manufacturer Part Number | LESW-15-30W-MCTP-P-WH |
Applications
- Building entrances
- Loading docks
- Walkways
- Parking perimeters
- Commercial exterior walls
- Security lighting upgrades
Compatibility and Installation Notes
Confirm the selected wattage and color temperature before energizing the fixture. Verify wall surface, branch circuit voltage, photocell operation, and local exterior lighting requirements before installation.
