Utopia Lighting

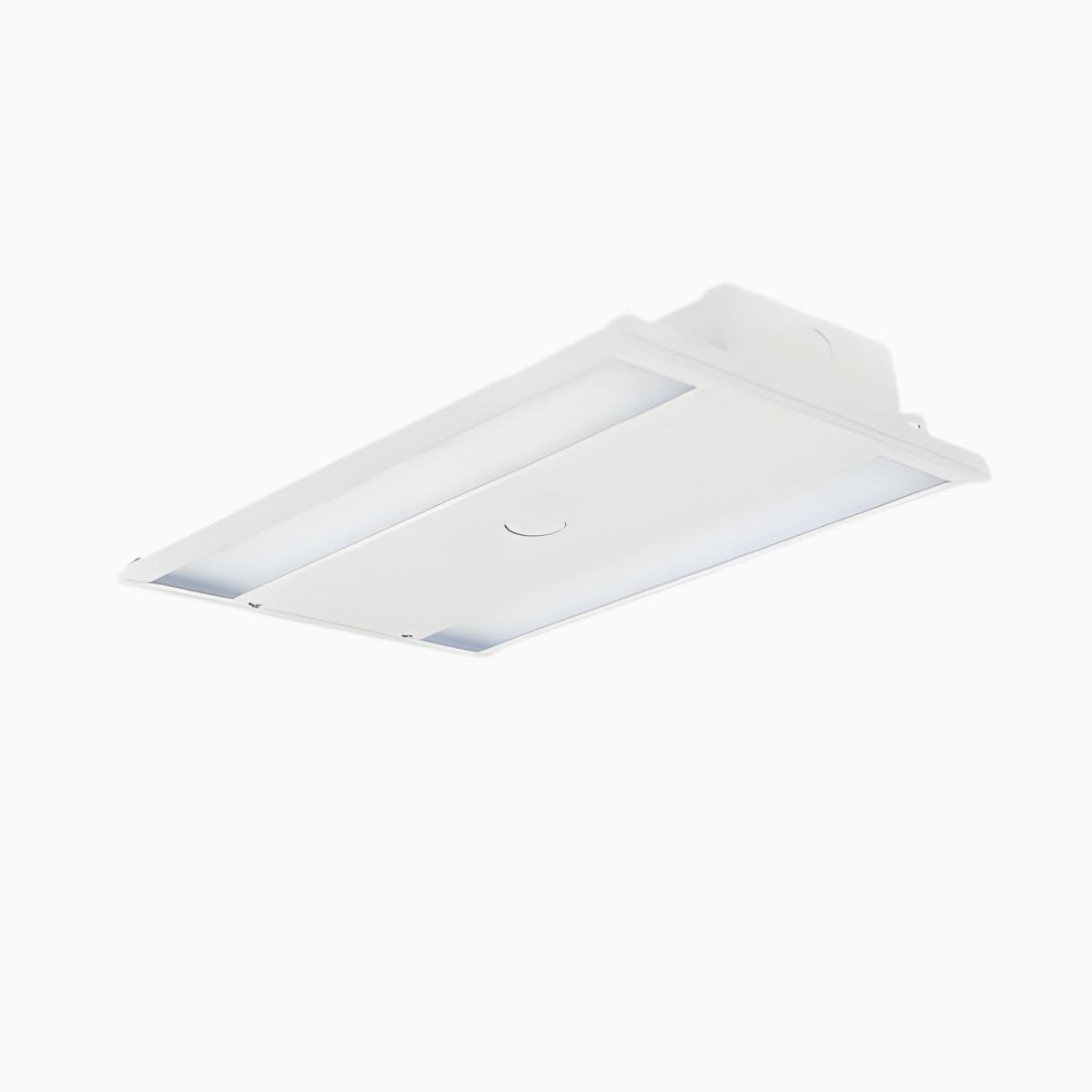

Utopia Lighting LDB Linear LED High Bay
Utopia Lighting LDB Linear LED High Bay
SKU:LDB
The Utopia Lighting LDB Linear LED High Bay is a commercial-grade led high bay engineered for warehouses, manufacturing floors, and large open commercial spaces. It delivers 86-210W, 139-30000 lm, 5000K with the reliability specifiers expect from Utopia Lighting.
This fixture is available in multiple configurations — see the ordering options below and request a quote for your project specification.
Key Features- Power: 86-210W
- Output: 139-30000 lm
- Efficacy: 142 lm/W
- Color temperature: 5000K
- Voltage: 120-277V
- Dimming: 0-10V
- Commercial-grade LED construction
| Brand | Utopia Lighting |
|---|---|
| Model | LDB |
| Type | LED High Bay |
| Wattage | 86-210W |
| Lumens | 139-30000 lm |
| Efficacy | 142 lm/W |
| Color Temperature | 5000K |
| Voltage | 120-277V |
| Dimming | 0-10V |
| Listings | UL, DLC, Damp Location, ARRA |
- Model LED Color Temp Voltage Lens
- LDB-2FT 4SL Selectable 86/129/172/210W LED (IC rated) -2T Selectable 40/50K UNV 120-277V (Blank) Clear Lens
- HV 347/480V
- Bollard Top Finish
- BRI823 Motion sensor with 0-10V dimming <Bluetooth>
- PPA102S Bluetooth Powerpack (Consult factory for installation location)
- EM15 2430 LUMEN EM Battery Backup
- CASAMBI Contact factory for CASAMBI READY options
Typical applications include warehouses, manufacturing floors, and large open commercial spaces.
Request a Quote: This product is configurable. Select your options and request a quote, or contact Lumera Electric for project pricing and lead times.
Lumera Electric supplies Utopia Lighting commercial LED fixtures with full specifications and project support for contractors, distributors, and specifiers.
