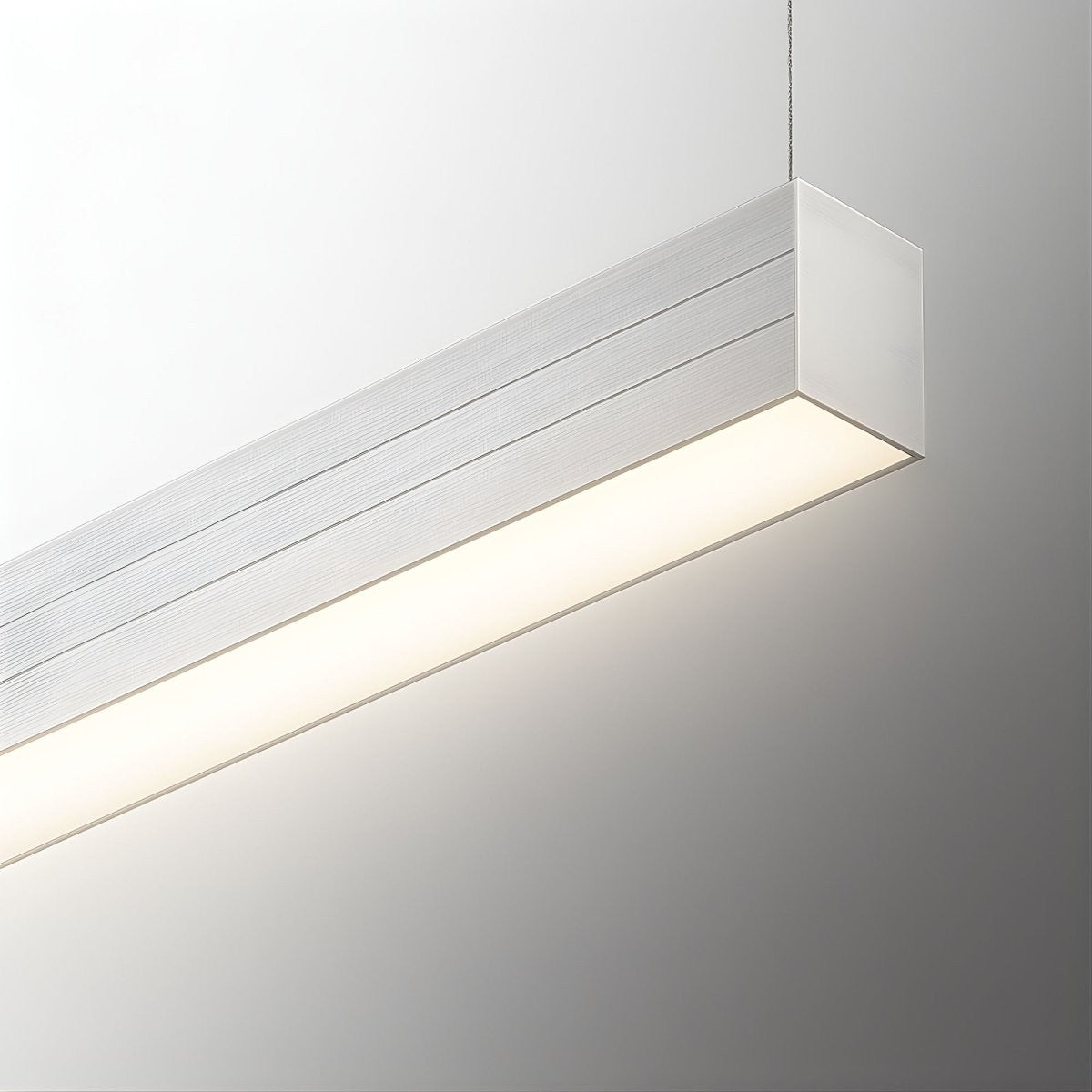

Utopia Lighting EB4-Direct/Indirect Suspended Linear Lighting
Utopia Lighting EB4-Direct/Indirect Suspended Linear Lighting
SKU:EB4-Direct/Indirect
The Utopia Lighting EB4-Direct/Indirect Suspended Linear Lighting is a commercial-grade led linear fixture engineered for architectural interiors, offices, and modern commercial spaces. It delivers 5-80W, 100-9600 lm, 3000K/3500K/4000K with the reliability specifiers expect from Utopia Lighting.
This fixture is available in multiple configurations — see the ordering options below and request a quote for your project specification.
Key Features- Power: 5-80W
- Output: 100-9600 lm
- Efficacy: 120 lm/W
- Color temperature: 3000K/3500K/4000K
- Voltage: 120-277V
- Dimming: 0-10V
- Commercial-grade LED construction
| Brand | Utopia Lighting |
|---|---|
| Model | EB4-Direct/Indirect |
| Type | LED Linear Fixture |
| Wattage | 5-80W |
| Lumens | 100-9600 lm |
| Efficacy | 120 lm/W |
| Color Temperature | 3000K/3500K/4000K |
| Voltage | 120-277V |
| Dimming | 0-10V |
| Listings | UL, CUL, Damp Location, ARRA |
- MODEL ROW 1 SECTION 2 LED COLOR TEMP. DISTRIBUTION
- EB4-IND xx’ Specify nominal 2 2’ Length 3S 100%, 75%, 50% 3T Selectable 30/35/40K DI Field selectable from the following
- (Individual Mount) overall row length 3 3’ Length adjustable distributions.
- EB4-CON 4 4’ Length Down/Up= 100/0, 90/10, 70/30, 50/50,
- (Continuous Row Mount) 8 8’ Length 30/70, 10/90, 0/100
- EB4-CM
- Must provide a sketch on the last page
- (Custom)
Typical applications include architectural interiors, offices, and modern commercial spaces.
Request a Quote: This product is configurable. Select your options and request a quote, or contact Lumera Electric for project pricing and lead times.
Lumera Electric supplies Utopia Lighting commercial LED fixtures with full specifications and project support for contractors, distributors, and specifiers.
