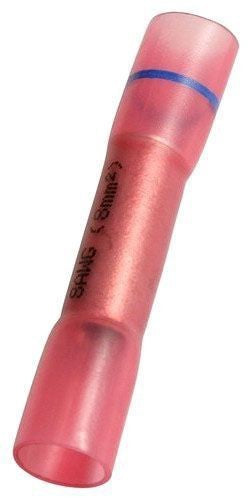

Morris 12342 Butt Splice 8 AWG
Morris 12342 Butt Splice 8 AWG
Regular price
$4.21
Regular price
Sale price
$4.21
SKU:12342
Quantity
Couldn't load pickup availability
The Morris 12342 Butt Splice Ht Shrink 8 to 16- is a Butt Splice built for electrical wire connection and contractor supply applications. It matches 8 AWG wire, 70 amps maximum current based on Morris source data.
SKU/Item Number: 12342
Key Features
- Connector supports electrical wire connection for 8 AWG conductors
- Morris SKU data supports exact catalog lookup
Technical Specifications
| SKU | 12342 |
|---|---|
| UPC | 601986123426 |
| Brand | Morris |
| Product Type | Butt Splice |
| Wire Range | 8 AWG |
| Connector Shape | Butt Splice |
| Color Code | Yellow |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Amp Rating | 70 amps |
| Barrel Design | Crimp barrel |
| Certifications | RoHS |
| Application | electrical wire connection and contractor supply applications |
Use Cases: Use this connector for electrical wire connection and contractor supply applications, especially where the repair requires 8 AWG conductors.
