Morris

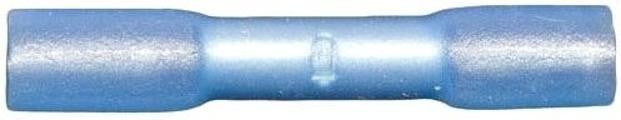

Morris 12334 Heat Shrink Butt Splice 16-14 AWG
Morris 12334 Heat Shrink Butt Splice 16-14 AWG
Regular price
$1.62
Regular price
Sale price
$1.62
SKU:12334
Quantity
Couldn't load pickup availability
The Morris 12334 16-14 Heat-Shrink Butt is a Heat Shrink Butt Splice built for sealed inline wire splicing where moisture resistance and strain relief are required. It matches 16-14 AWG wire, Heat Shrink insulation, 30 amps maximum current based on Morris source data.
SKU/Item Number: 12334
Key Features
- Heat-shrink construction supports sealed termination for 16-14 AWG wire
- Adhesive-lined insulation helps protect the crimped connection from moisture intrusion
- Tinned copper terminal body supports electrical conductivity and corrosion resistance
- Heat-shrink sleeve adds strain relief after installation
- Terminal geometry supports the listed connection point: 16-14 AWG
- Sealed terminal format supports harsh-environment repair and maintenance work
Technical Specifications
| SKU | 12334 |
|---|---|
| UPC | 601986123341 |
| Brand | Morris |
| Product Type | Heat Shrink Butt Splice |
| Wire Range | 16-14 AWG |
| Connector Shape | Heat Shrink Butt Splice |
| Insulation Type | Heat Shrink |
| Color Code | Blue |
| Material | Tinned copper with adhesive-lined heat-shrink insulation |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 30 amps |
| Barrel Design | Crimp barrel with heat-shrink sleeve |
| Key Construction Feature | Sealed connection with strain relief |
| Certifications | UL, cUL, RoHS |
| Application | sealed inline wire splicing where moisture resistance and strain relief are required |
Use Cases: Use this heat-shrink connector for sealed inline wire splicing where moisture resistance and strain relief are required, especially where the installation requires 16-14 AWG wire and sealed insulation.
