Morris

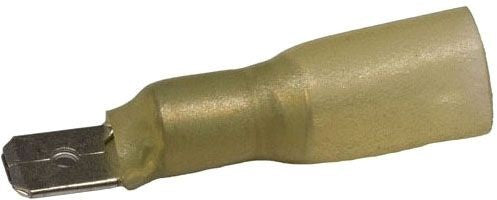

Morris 12296 Heat Shrink Electrical Connector 12-10 AWG
Morris 12296 Heat Shrink Electrical Connector 12-10 AWG
Regular price
$1.44
Regular price
Sale price
$1.44
SKU:12296
Quantity
Couldn't load pickup availability
The Morris 12296 12-10 Heat Shrink Male is a Heat Shrink Electrical Connector built for electrical wire connection and contractor supply applications. It matches 12-10 AWG wire, Heat Shrink insulation, 50 amps maximum current based on Morris source data.
SKU/Item Number: 12296
Key Features
- Connector supports electrical wire connection for 12-10 AWG conductors
- Morris SKU data supports exact catalog lookup
Technical Specifications
| SKU | 12296 |
|---|---|
| UPC | 601986122962 |
| Brand | Morris |
| Product Type | Heat Shrink Electrical Connector |
| Wire Range | 12-10 AWG |
| Connector Shape | Electrical Connector |
| Insulation Type | Heat Shrink |
| Color Code | Yellow |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Amp Rating | 50 amps |
| Barrel Design | Crimp barrel |
| Certifications | RoHS |
| Application | electrical wire connection and contractor supply applications |
Use Cases: Use this connector for electrical wire connection and contractor supply applications, especially where the repair requires 12-10 AWG conductors.
