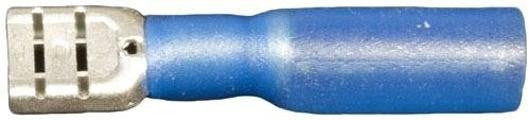

Morris 12274 Heat Shrink Electrical Connector 16-14 AWG
Morris 12274 Heat Shrink Electrical Connector 16-14 AWG
Regular price
$1.42
Regular price
Sale price
$1.42
SKU:12274
Quantity
Couldn't load pickup availability
The Morris 12274 16-14 Heat Shrink Female is a Heat Shrink Electrical Connector built for electrical wire connection and contractor supply applications. It matches 16-14 AWG wire, Heat Shrink insulation, 30 amps maximum current based on Morris source data.
SKU/Item Number: 12274
Key Features
- Connector supports electrical wire connection for 16-14 AWG conductors
- Morris SKU data supports exact catalog lookup
Technical Specifications
| SKU | 12274 |
|---|---|
| UPC | 601986122740 |
| Brand | Morris |
| Product Type | Heat Shrink Electrical Connector |
| Wire Range | 16-14 AWG |
| Connector Shape | Electrical Connector |
| Insulation Type | Heat Shrink |
| Color Code | Blue |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Amp Rating | 30 amps |
| Barrel Design | Crimp barrel |
| Certifications | RoHS |
| Application | electrical wire connection and contractor supply applications |
Use Cases: Use this connector for electrical wire connection and contractor supply applications, especially where the repair requires 16-14 AWG conductors.
