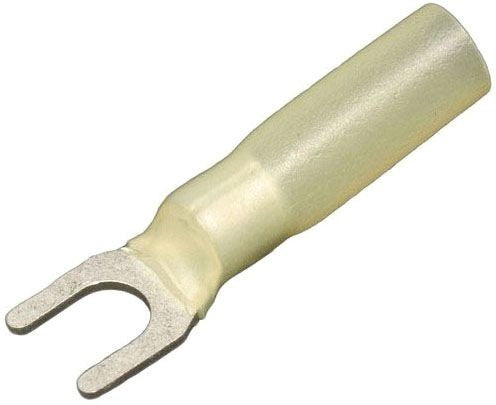

Morris 12268 Heat Shrink Spade Terminal 12-10 AWG 1/4 In Stud
Morris 12268 Heat Shrink Spade Terminal 12-10 AWG 1/4 In Stud
Regular price
$2.36
Regular price
Sale price
$2.36
SKU:12268
Quantity
Couldn't load pickup availability
The Morris 12268 12-10 1/4 Heat Shrink Spade is a Heat Shrink Spade Terminal built for sealed removable stud termination where moisture resistance and strain relief are required. It matches 12-10 AWG wire, 1/4 in stud size, Heat Shrink insulation, 50 amps maximum current based on Morris source data.
SKU/Item Number: 12268
Key Features
- Heat-shrink construction supports sealed termination for 12-10 AWG wire
- Adhesive-lined insulation helps protect the crimped connection from moisture intrusion
- Tinned copper terminal body supports electrical conductivity and corrosion resistance
- Heat-shrink sleeve adds strain relief after installation
- Terminal geometry supports the listed connection point: 1/4 in
- Sealed terminal format supports harsh-environment repair and maintenance work
Technical Specifications
| SKU | 12268 |
|---|---|
| UPC | 601986122689 |
| Brand | Morris |
| Product Type | Heat Shrink Spade Terminal |
| Wire Range | 12-10 AWG |
| Stud Size | 1/4 in |
| Connector Shape | Heat Shrink Spade Terminal |
| Insulation Type | Heat Shrink |
| Color Code | Yellow |
| Material | Tinned copper with adhesive-lined heat-shrink insulation |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 50 amps |
| Barrel Design | Crimp barrel with heat-shrink sleeve |
| Key Construction Feature | Sealed connection with strain relief |
| Certifications | UL, cUL, RoHS |
| Application | sealed removable stud termination where moisture resistance and strain relief are required |
Use Cases: Use this heat-shrink connector for sealed removable stud termination where moisture resistance and strain relief are required, especially where the installation requires 12-10 AWG wire and sealed insulation.
