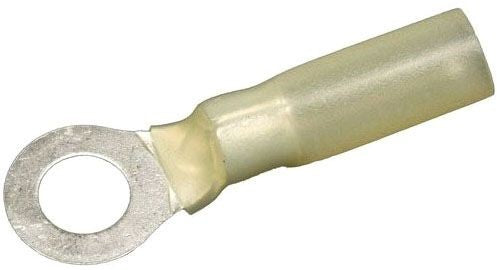

Morris 12242 Heat Shrink Electrical Connector 12-10 AWG 5/16 In Stud
Morris 12242 Heat Shrink Electrical Connector 12-10 AWG 5/16 In Stud
Regular price
$2.34
Regular price
Sale price
$2.34
SKU:12242
Quantity
Couldn't load pickup availability
The Morris 12242 12-10 5/16 Heat ShRingkable Ring is a Heat Shrink Electrical Connector built for electrical wire connection and contractor supply applications. It matches 12-10 AWG wire, 5/16 in stud size, Heat Shrink insulation, 35 to 50 amps maximum current based on Morris source data.
SKU/Item Number: 12242
Key Features
- Connector supports electrical wire connection for 12-10 AWG conductors
- Morris SKU data supports exact catalog lookup
Technical Specifications
| SKU | 12242 |
|---|---|
| UPC | 601986122429 |
| Brand | Morris |
| Product Type | Heat Shrink Electrical Connector |
| Wire Range | 12-10 AWG |
| Stud Size | 5/16 in |
| Connector Shape | Electrical Connector |
| Insulation Type | Heat Shrink |
| Color Code | Yellow |
| Material | Electrolytic copper with high-density PE heat shrink |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 35 to 50 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Heat-shrink insulation with moisture protection and strain relief |
| Certifications | UL, cUL, RoHS |
| Application | electrical wire connection and contractor supply applications |
Use Cases: Use this connector for electrical wire connection and contractor supply applications, especially where the repair requires 12-10 AWG conductors.
