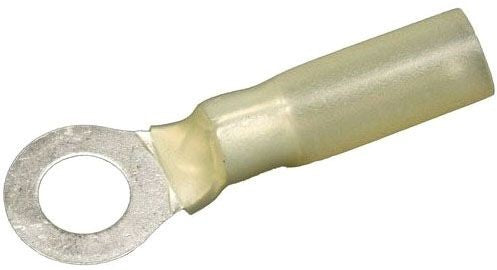

Morris 12238 Heat Shrink Ring Terminal 12-10 AWG #10 Stud
Morris 12238 Heat Shrink Ring Terminal 12-10 AWG #10 Stud
Regular price
$2.00
Regular price
Sale price
$2.00
SKU:12238
Quantity
Couldn't load pickup availability
The Morris 12238 12-10 #10 Heat ShRingkable Ringg is a Heat Shrink Ring Terminal built for sealed stud-mounted wire termination where moisture resistance and strain relief are required. It matches 12-10 AWG wire, #10 stud size, Heat Shrink insulation, 35 to 50 amps maximum current based on Morris source data.
SKU/Item Number: 12238
Key Features
- Heat-shrink ring terminal supports sealed stud termination at #10
- Terminal body supports 12-10 AWG conductor termination
- High-density PE heat-shrink insulation helps protect against moisture intrusion
- Electrolytic copper terminal body supports electrical conductivity
- Electro-tin plating helps resist corrosion at the connection point
- Brazed seam and serrated barrel improve mechanical retention after crimping
Technical Specifications
| SKU | 12238 |
|---|---|
| UPC | 601986122382 |
| Brand | Morris |
| Product Type | Heat Shrink Ring Terminal |
| Wire Range | 12-10 AWG |
| Stud Size | #10 |
| Connector Shape | Heat Shrink Ring Terminal |
| Insulation Type | Heat Shrink |
| Color Code | Yellow |
| Material | Electrolytic copper with high-density PE heat shrink |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 35 to 50 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Heat-shrink insulation with moisture protection and strain relief |
| Certifications | UL, cUL, RoHS |
| Application | sealed stud-mounted wire termination where moisture resistance and strain relief are required |
Use Cases: Use this heat-shrink terminal for sealed stud-mounted wire termination where moisture resistance and strain relief are required, especially where the installation requires 12-10 AWG wire and sealed insulation.
