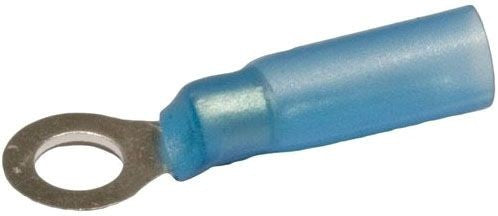

Morris 12232 Heat Shrink Electrical Connector 16-14 AWG 5/16 In Stud
Morris 12232 Heat Shrink Electrical Connector 16-14 AWG 5/16 In Stud
Regular price
$0.94
Regular price
Sale price
$0.94
SKU:12232
Quantity
Couldn't load pickup availability
The Morris 12232 16-14 5/16 Heat ShRingkable Ring is a Heat Shrink Electrical Connector built for electrical wire connection and contractor supply applications. It matches 16-14 AWG wire, 5/16 in stud size, Heat Shrink insulation, 18 to 30 amps maximum current based on Morris source data.
SKU/Item Number: 12232
Key Features
- Connector supports electrical wire connection for 16-14 AWG conductors
- Morris SKU data supports exact catalog lookup
Technical Specifications
| SKU | 12232 |
|---|---|
| UPC | 601986122320 |
| Brand | Morris |
| Product Type | Heat Shrink Electrical Connector |
| Wire Range | 16-14 AWG |
| Stud Size | 5/16 in |
| Connector Shape | Electrical Connector |
| Insulation Type | Heat Shrink |
| Color Code | Blue |
| Material | Electrolytic copper with high-density PE heat shrink |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 18 to 30 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Heat-shrink insulation with moisture protection and strain relief |
| Certifications | UL, cUL, RoHS |
| Application | electrical wire connection and contractor supply applications |
Use Cases: Use this connector for electrical wire connection and contractor supply applications, especially where the repair requires 16-14 AWG conductors.
