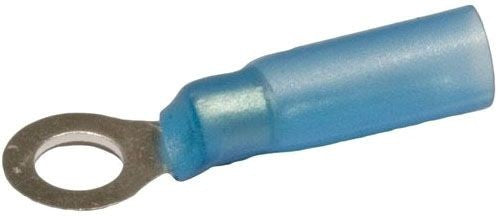

Morris 12230 Heat Shrink Ring Terminal 16-14 AWG 1/4 In Stud
Morris 12230 Heat Shrink Ring Terminal 16-14 AWG 1/4 In Stud
Regular price
$1.78
Regular price
Sale price
$1.78
SKU:12230
Quantity
Couldn't load pickup availability
The Morris 12230 16-14 1/4 Heat ShRingkable Ringg is a Heat Shrink Ring Terminal built for sealed stud-mounted wire termination where moisture resistance and strain relief are required. It matches 16-14 AWG wire, 1/4 in stud size, Heat Shrink insulation, 18 to 30 amps maximum current based on Morris source data.
SKU/Item Number: 12230
Key Features
- Heat-shrink ring terminal supports sealed stud termination at 1/4 in
- Terminal body supports 16-14 AWG conductor termination
- High-density PE heat-shrink insulation helps protect against moisture intrusion
- Electrolytic copper terminal body supports electrical conductivity
- Electro-tin plating helps resist corrosion at the connection point
- Brazed seam and serrated barrel improve mechanical retention after crimping
Technical Specifications
| SKU | 12230 |
|---|---|
| UPC | 601986122306 |
| Brand | Morris |
| Product Type | Heat Shrink Ring Terminal |
| Wire Range | 16-14 AWG |
| Stud Size | 1/4 in |
| Connector Shape | Heat Shrink Ring Terminal |
| Insulation Type | Heat Shrink |
| Color Code | Blue |
| Material | Electrolytic copper with high-density PE heat shrink |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 18 to 30 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Heat-shrink insulation with moisture protection and strain relief |
| Certifications | UL, cUL, RoHS |
| Application | sealed stud-mounted wire termination where moisture resistance and strain relief are required |
Use Cases: Use this heat-shrink terminal for sealed stud-mounted wire termination where moisture resistance and strain relief are required, especially where the installation requires 16-14 AWG wire and sealed insulation.
