Morris

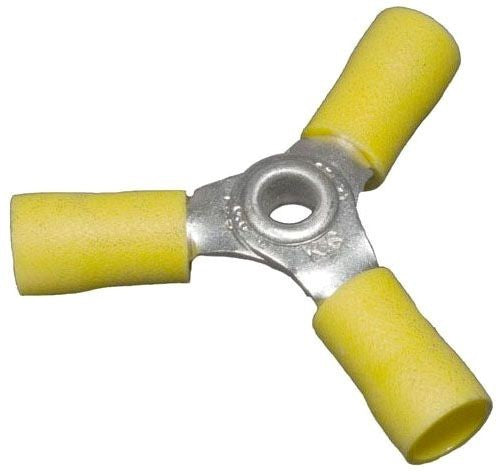

Morris 12176 Vinyl 3-Way Connector 12-10 AWG
Morris 12176 Vinyl 3-Way Connector 12-10 AWG
Regular price
$1.17
Regular price
Sale price
$1.17
SKU:12176
Quantity
Couldn't load pickup availability
The Morris 12176 12-10 3 Way Vinyl Connector is a Vinyl 3-Way Connector built for three-way conductor joining for branch wiring, equipment repairs, and control wiring. It matches 12-10 AWG wire, Nylon insulation, 35 to 50 amps maximum current based on Morris source data.
SKU/Item Number: 12176
Key Features
- 3-Way connector supports branch conductor joining for 12-10 AWG wire
- Vinyl insulation supports a color-coded connector body
- High-strength electrolytic copper construction supports electrical contact
- Electro-tin plating helps resist corrosion inside the crimped connection
- Serrated barrel improves contact and resistance to pull-out forces
- Expanded insulation entry reduces strand hang-up during conductor insertion
Technical Specifications
| SKU | 12176 |
|---|---|
| UPC | 601986121767 |
| Brand | Morris |
| Product Type | Vinyl 3-Way Connector |
| Wire Range | 12-10 AWG |
| Connector Shape | 3-Way Connector |
| Insulation Type | Nylon |
| Color Code | Yellow |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 35 to 50 amps |
| Barrel Design | Crimp barrel |
| Key Construction Feature | Nylon insulation and expanded insulation entry |
| Certifications | cULus Listed, RoHS |
| Application | three-way conductor joining for branch wiring, equipment repairs, and control wiring |
Use Cases: Use this multi-way connector for three-way conductor joining for branch wiring, equipment repairs, and control wiring, especially where branch wiring requires 12-10 AWG wire.
