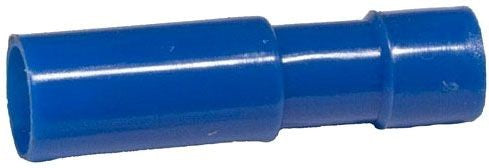

Morris 12096 Nylon Fully Insulated Electrical Terminal 16-14 AWG
Morris 12096 Nylon Fully Insulated Electrical Terminal 16-14 AWG
Regular price
$0.36
Regular price
Sale price
$0.36
SKU:12096
Quantity
Couldn't load pickup availability
The Morris 12096 16-14 Nylon Fully Ins Rec .193 is a Nylon Fully Insulated Electrical Terminal built for electrical wire termination and contractor supply applications. It matches 16-14 AWG wire, Nylon Fully Insulated insulation, 30 amps maximum current based on Morris source data.
SKU/Item Number: 12096
Key Features
- Terminal supports electrical wire termination for 16-14 AWG conductors
- Morris SKU data supports exact catalog lookup
Technical Specifications
| SKU | 12096 |
|---|---|
| UPC | 601986120968 |
| Brand | Morris |
| Product Type | Nylon Fully Insulated Electrical Terminal |
| Wire Range | 16-14 AWG |
| Terminal Shape | Electrical Terminal |
| Insulation Type | Nylon Fully Insulated |
| Color Code | Blue |
| Material | Copper alloy |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Amp Rating | 30 amps |
| Certifications | RoHS |
| Application | electrical wire termination and contractor supply applications |
Use Cases: electrical wire termination and contractor supply applications.
