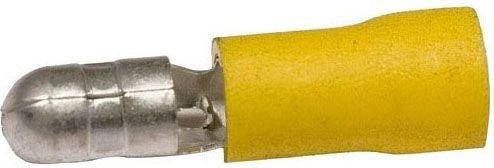

Morris 12048 Nylon Bullet Disconnect 12-10 AWG
Morris 12048 Nylon Bullet Disconnect 12-10 AWG
Regular price
$0.18
Regular price
Sale price
$0.18
SKU:12048
Quantity
Couldn't load pickup availability
The Morris 12048 12-10 Vinyl Bullet is a Nylon Bullet Disconnect built for bullet-style wire termination for serviceable equipment and harness connections. It matches 12-10 AWG wire, Nylon insulation, 50 amps maximum current based on Morris source data.
SKU/Item Number: 12048
Key Features
- Bullet disconnect format supports serviceable inline connections for 12-10 AWG wire
- Male/female bullet style supports harness and equipment wiring service
- Electro-tin plated contact helps resist corrosion at the connection point
- Insulated terminal body supports cleaner field wiring
- Crimp barrel design improves conductor retention after installation
Technical Specifications
| SKU | 12048 |
|---|---|
| UPC | 601986120487 |
| Brand | Morris |
| Product Type | Nylon Bullet Disconnect |
| Wire Range | 12-10 AWG |
| Terminal Shape | Bullet Disconnect |
| Insulation Type | Nylon |
| Color Code | Yellow |
| Material | Brass |
| Finish | Electro-tin plated |
| Voltage Rating | 300 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 50 amps |
| Barrel Design | Butted seam with serrated barrel |
| Key Construction Feature | Quick-disconnect tab interface |
| Certifications | UL, cUL, RoHS |
| Application | bullet-style wire termination for serviceable equipment and harness connections |
Use Cases: Use this disconnect for bullet-style wire termination for serviceable equipment and harness connections, especially where equipment wiring requires 12-10 AWG wire and a quick-disconnect tab.
