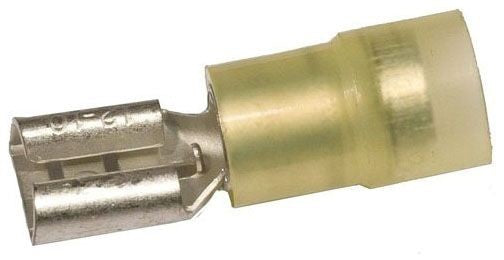

Morris 11932 Nylon Double Crimp Female Disconnect 12-10 AWG .032 X .187 In Tab
Morris 11932 Nylon Double Crimp Female Disconnect 12-10 AWG .032 X .187 In Tab
Regular price
$0.32
Regular price
Sale price
$0.32
SKU:11932
Quantity
Couldn't load pickup availability
The Morris 11932 12-10 .032 x .187 Double Crimp Female is a Nylon Double Crimp Female Disconnect built for female quick-disconnect wire termination for serviceable electrical equipment connections. It matches 12-10 AWG wire, .032 x .187 in tab size, .032 x .187 in blade size, Nylon insulation, 50 amps maximum current based on Morris source data.
SKU/Item Number: 11932
Key Features
- Female Disconnect design supports a serviceable quick-disconnect connection at .032 x .187 in
- Double crimp construction supports both conductor and insulation grip for 12-10 AWG conductors
- Nylon insulation supports the listed terminal body and field-service use
- Electro-tin plated brass contact helps resist corrosion at the connection point
- Brazed seam construction helps prevent splitting under crimp pressure
- Tab-size matching supports accurate male and female disconnect selection
Technical Specifications
| SKU | 11932 |
|---|---|
| UPC | 601986119320 |
| Brand | Morris |
| Product Type | Nylon Double Crimp Female Disconnect |
| Wire Range | 12-10 AWG |
| Tab Size | .032 x .187 in |
| Blade Size | .032 x .187 in |
| Terminal Shape | Double Crimp Female Disconnect |
| Insulation Type | Nylon |
| Color Code | Yellow |
| Material | Brass and nylon |
| Finish | Electro-tin plated |
| Voltage Rating | 300 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 50 amps |
| Barrel Design | Double crimp barrel |
| Key Construction Feature | Expanded insulation entry and serrated barrel |
| Certifications | UL, cUL, RoHS |
| Application | female quick-disconnect wire termination for serviceable electrical equipment connections |
Use Cases: Use this disconnect for female quick-disconnect wire termination for serviceable electrical equipment connections, especially where equipment wiring requires 12-10 AWG wire and a .032 x .187 in quick-disconnect tab.
