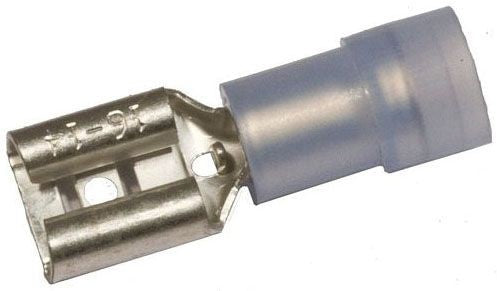

Morris 11922 Nylon Double Crimp Female Disconnect 16-14 AWG .020 X .205 In Tab
Morris 11922 Nylon Double Crimp Female Disconnect 16-14 AWG .020 X .205 In Tab
Regular price
$0.16
Regular price
Sale price
$0.16
SKU:11922
Quantity
Couldn't load pickup availability
The Morris 11922 16-14 .020 x .205 Double Crimp Female is a Nylon Double Crimp Female Disconnect built for female quick-disconnect wire termination for serviceable electrical equipment connections. It matches 16-14 AWG wire, .020 x .205 in tab size, .020 x .205 in blade size, Nylon insulation, 30 amps maximum current based on Morris source data.
SKU/Item Number: 11922
Key Features
- Female Disconnect design supports a serviceable quick-disconnect connection at .020 x .205 in
- Double crimp construction supports both conductor and insulation grip for 16-14 AWG conductors
- Nylon insulation supports the listed terminal body and field-service use
- Electro-tin plated brass contact helps resist corrosion at the connection point
- Brazed seam construction helps prevent splitting under crimp pressure
- Tab-size matching supports accurate male and female disconnect selection
Technical Specifications
| SKU | 11922 |
|---|---|
| UPC | 601986119221 |
| Brand | Morris |
| Product Type | Nylon Double Crimp Female Disconnect |
| Wire Range | 16-14 AWG |
| Tab Size | .020 x .205 in |
| Blade Size | .020 x .205 in |
| Terminal Shape | Double Crimp Female Disconnect |
| Insulation Type | Nylon |
| Color Code | Blue |
| Material | Brass and nylon |
| Finish | Electro-tin plated |
| Voltage Rating | 300 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 30 amps |
| Barrel Design | Double crimp barrel |
| Key Construction Feature | Expanded insulation entry and serrated barrel |
| Certifications | UL, cUL, RoHS |
| Application | female quick-disconnect wire termination for serviceable electrical equipment connections |
Use Cases: Use this disconnect for female quick-disconnect wire termination for serviceable electrical equipment connections, especially where equipment wiring requires 16-14 AWG wire and a .020 x .205 in quick-disconnect tab.
