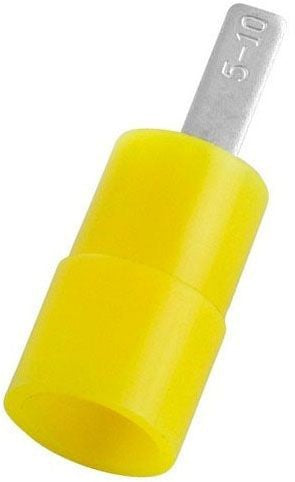

Morris 11846 Nylon Blade Terminal 12-10 AWG .110 X .039 In Tab

Morris 11846 Nylon Blade Terminal 12-10 AWG .110 X .039 In Tab

$0.52
$0.52
Sale Sold out

11846

The Morris 11846 12-10 .110 x .039 Nylon Insulated Blade is a Nylon Blade Terminal built for blade-style wire termination for control panels, equipment wiring, and field service connections. It matches 12-10 AWG wire, .110 x .039 in tab size, .110 x .039 in blade size, Nylon insulation, 50 amps maximum current based on Morris source data.

SKU/Item Number: 11846

Key Features

  • Blade terminal design supports equipment connections with a .110 x .039 in blade size
  • Color-coded nylon insulation identifies the conductor range as 12-10 AWG
  • Electro-tin plated copper construction supports conductivity and corrosion resistance
  • Blade-style flat contact supports terminal block and equipment wiring
  • Expanded insulation entry reduces strand hang-up during crimp preparation
  • Serrated barrel improves mechanical grip after crimping

Technical Specifications

SKU 11846
UPC 601986118460
Brand Morris
Product Type Nylon Blade Terminal
Wire Range 12-10 AWG
Tab Size .110 x .039 in
Blade Size .110 x .039 in
Terminal Shape Blade Terminal
Insulation Type Nylon
Color Code Yellow
Material Electro-tin plated copper
Finish Electro-tin plated
Voltage Rating 600 V
Temperature Rating 221°F (105°C)
Amp Rating 50 amps
Barrel Design Brazed seam with serrated barrel
Key Construction Feature Expanded insulation entry and serrated barrel
Certifications UL, cUL, RoHS
Application blade-style wire termination for control panels, equipment wiring, and field service connections

Use Cases: Use this blade terminal for blade-style wire termination for control panels, equipment wiring, and field service connections, especially where the connection requires a .110 x .039 in blade size.
