• Morris 11844 Nylon Blade Terminal 16-14 AWG .118 X .031 In Tab
1 1

Morris

Morris 11844 Nylon Blade Terminal 16-14 AWG .118 X .031 In Tab

Morris 11844 Nylon Blade Terminal 16-14 AWG .118 X .031 In Tab

$0.38
$0.38
Sale Sold out

11844

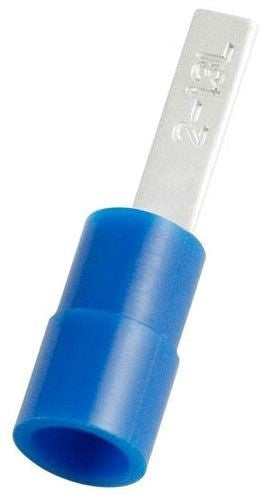

The Morris 11844 16-14 .118 x .031 Nylon Insulated Blade is a Nylon Blade Terminal built for blade-style wire termination for control panels, equipment wiring, and field service connections. It matches 16-14 AWG wire, .118 x .031 in tab size, .118 x .031 in blade size, Nylon insulation, 30 amps maximum current based on Morris source data.

SKU/Item Number: 11844

Key Features

  • Blade terminal design supports equipment connections with a .118 x .031 in blade size
  • Color-coded nylon insulation identifies the conductor range as 16-14 AWG
  • Electro-tin plated copper construction supports conductivity and corrosion resistance
  • Blade-style flat contact supports terminal block and equipment wiring
  • Expanded insulation entry reduces strand hang-up during crimp preparation
  • Serrated barrel improves mechanical grip after crimping

Technical Specifications

SKU 11844
UPC 601986118446
Brand Morris
Product Type Nylon Blade Terminal
Wire Range 16-14 AWG
Tab Size .118 x .031 in
Blade Size .118 x .031 in
Terminal Shape Blade Terminal
Insulation Type Nylon
Color Code Blue
Material Electro-tin plated copper
Finish Electro-tin plated
Voltage Rating 600 V
Temperature Rating 221°F (105°C)
Amp Rating 30 amps
Barrel Design Brazed seam with serrated barrel
Key Construction Feature Expanded insulation entry and serrated barrel
Certifications UL, cUL, RoHS
Application blade-style wire termination for control panels, equipment wiring, and field service connections

Use Cases: Use this blade terminal for blade-style wire termination for control panels, equipment wiring, and field service connections, especially where the connection requires a .118 x .031 in blade size.
