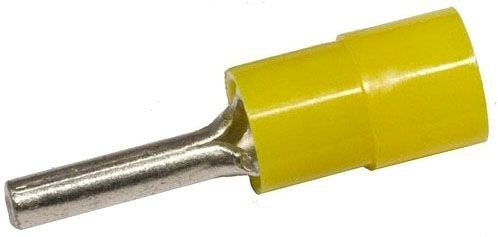

Morris 11836 Nylon Pin Terminal 12-10 AWG
Morris 11836 Nylon Pin Terminal 12-10 AWG
Regular price
$0.52
Regular price
Sale price
$0.52
SKU:11836
Quantity
Couldn't load pickup availability
The Morris 11836 12-10 Nylon Insulated Pin is a Nylon Pin Terminal built for pin-style wire termination for terminal blocks, control wiring, and equipment connections. It matches 12-10 AWG wire, Nylon insulation, 50 amps maximum current based on Morris source data.
SKU/Item Number: 11836
Key Features
- Pin terminal design supports compact terminal-block wiring for 12-10 AWG conductors
- Nylon construction supports the listed crimp-terminal format
- Electro-tin plated copper construction supports conductivity and corrosion resistance
- Pin-style connection supports equipment wiring where fork or ring clearance is limited
- Brazed or serrated barrel construction improves crimp retention
- SKU-specific design supports accurate field replenishment
Technical Specifications
| SKU | 11836 |
|---|---|
| UPC | 601986118361 |
| Brand | Morris |
| Product Type | Nylon Pin Terminal |
| Wire Range | 12-10 AWG |
| Terminal Shape | Pin Terminal |
| Insulation Type | Nylon |
| Color Code | Yellow |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 50 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Expanded insulation entry and serrated barrel |
| Certifications | UL, cUL, RoHS |
| Application | pin-style wire termination for terminal blocks, control wiring, and equipment connections |
Use Cases: Use this pin terminal for pin-style wire termination for terminal blocks, control wiring, and equipment connections, especially where field work needs 12-10 AWG wire in compact terminal-block connections.
