Morris

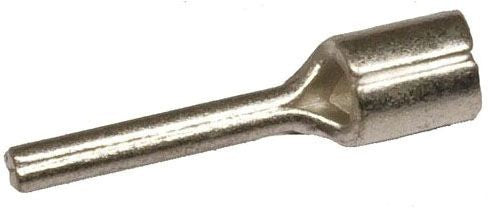

Morris 11824 Non-insulated Pin Terminal 16-14 AWG
Morris 11824 Non-insulated Pin Terminal 16-14 AWG
Regular price
$0.22
Regular price
Sale price
$0.22
SKU:11824
Quantity
Couldn't load pickup availability
The Morris 11824 16-14 Non-Insulated Pin is a Non-Insulated Pin Terminal built for pin-style wire termination for terminal blocks, control wiring, and equipment connections. It matches 16-14 AWG wire, Non-Insulated insulation, 30 amps maximum current based on Morris source data.
SKU/Item Number: 11824
Key Features
- Pin terminal design supports compact terminal-block wiring for 16-14 AWG conductors
- Non-Insulated construction supports the listed crimp-terminal format
- Electro-tin plated copper construction supports conductivity and corrosion resistance
- Pin-style connection supports equipment wiring where fork or ring clearance is limited
- Brazed or serrated barrel construction improves crimp retention
- SKU-specific design supports accurate field replenishment
Technical Specifications
| SKU | 11824 |
|---|---|
| UPC | 601986118248 |
| Brand | Morris |
| Product Type | Non-Insulated Pin Terminal |
| Wire Range | 16-14 AWG |
| Terminal Shape | Pin Terminal |
| Insulation Type | Non-Insulated |
| Color Code | Tin-Plated Copper |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 302°F (150°C) |
| Amp Rating | 30 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Wire range stamping and open metal barrel |
| Certifications | cULus listed, RoHS |
| Application | pin-style wire termination for terminal blocks, control wiring, and equipment connections |
Use Cases: Use this pin terminal for pin-style wire termination for terminal blocks, control wiring, and equipment connections, especially where field work needs 16-14 AWG wire in compact terminal-block connections.
