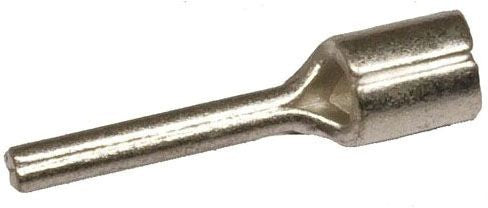

Morris 11822 Non-insulated Pin Terminal 22-16 AWG
Morris 11822 Non-insulated Pin Terminal 22-16 AWG
Regular price
$0.18
Regular price
Sale price
$0.18
SKU:11822
Quantity
Couldn't load pickup availability
The Morris 11822 22-16 Non-Insulated Pin is a Non-Insulated Pin Terminal built for pin-style wire termination for terminal blocks, control wiring, and equipment connections. It matches 22-16 AWG wire, Non-Insulated insulation, 18 amps maximum current based on Morris source data.
SKU/Item Number: 11822
Key Features
- Pin terminal design supports compact terminal-block wiring for 22-16 AWG conductors
- Non-Insulated construction supports the listed crimp-terminal format
- Electro-tin plated copper construction supports conductivity and corrosion resistance
- Pin-style connection supports equipment wiring where fork or ring clearance is limited
- Brazed or serrated barrel construction improves crimp retention
- SKU-specific design supports accurate field replenishment
Technical Specifications
| SKU | 11822 |
|---|---|
| UPC | 601986118224 |
| Brand | Morris |
| Product Type | Non-Insulated Pin Terminal |
| Wire Range | 22-16 AWG |
| Terminal Shape | Pin Terminal |
| Insulation Type | Non-Insulated |
| Color Code | Tin-Plated Copper |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 302°F (150°C) |
| Amp Rating | 18 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Wire range stamping and open metal barrel |
| Certifications | cULus listed, RoHS |
| Application | pin-style wire termination for terminal blocks, control wiring, and equipment connections |
Use Cases: Use this pin terminal for pin-style wire termination for terminal blocks, control wiring, and equipment connections, especially where field work needs 22-16 AWG wire in compact terminal-block connections.
