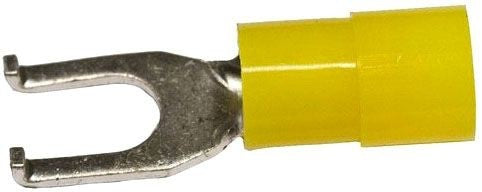

Morris 11818 Nylon Flange Spade Terminal 12-10 AWG #8 Stud
Morris 11818 Nylon Flange Spade Terminal 12-10 AWG #8 Stud
Regular price
$0.27
Regular price
Sale price
$0.27
SKU:11818
Quantity
Couldn't load pickup availability
The Morris 11818 12-10 #8 Nylon Flange Spade is a Nylon Flange Spade Terminal built for removable stud-mounted wire termination where flange geometry improves fork terminal positioning. It matches 12-10 AWG wire, #8 stud size, Nylon insulation, 50 amps maximum current based on Morris source data.
SKU/Item Number: 11818
Key Features
- Flange spade design supports removable stud termination at #8
- Nylon barrel format supports 12-10 AWG conductor termination
- Flange geometry improves terminal positioning during panel and equipment service
- Electro-tin plated copper construction supports conductivity and corrosion resistance
- Open fork design allows service without fully removing the stud fastener
- Serrated or brazed barrel construction improves mechanical crimp retention
Technical Specifications
| SKU | 11818 |
|---|---|
| UPC | 601986118187 |
| Brand | Morris |
| Product Type | Nylon Flange Spade Terminal |
| Wire Range | 12-10 AWG |
| Stud Size | #8 |
| Terminal Shape | Flange Spade Terminal |
| Insulation Type | Nylon |
| Color Code | Yellow |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 50 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Expanded insulation entry and serrated barrel |
| Certifications | UL, cUL, RoHS |
| Application | removable stud-mounted wire termination where flange geometry improves fork terminal positioning |
Use Cases: Use this flange spade terminal for removable stud-mounted wire termination where flange geometry improves fork terminal positioning, especially where field work needs 12-10 AWG wire and a #8 stud connection.
