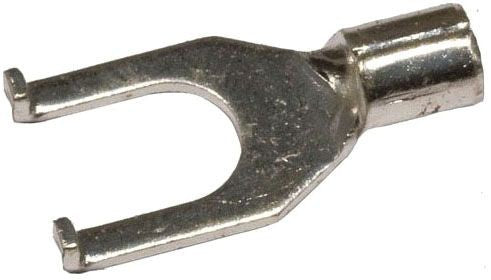

Morris 11760 Non-insulated Flange Spade Terminal 12-10 AWG #10 Stud

Morris 11760 Non-insulated Flange Spade Terminal 12-10 AWG #10 Stud

$0.20
$0.20
Sale Sold out

11760

The Morris 11760 12-10 #10 Non-Insulated Flange Spade is a Non-Insulated Flange Spade Terminal built for removable stud-mounted wire termination where flange geometry improves fork terminal positioning. It matches 12-10 AWG wire, #10 stud size, Non-Insulated insulation, 50 amps maximum current based on Morris source data.

SKU/Item Number: 11760

Key Features

  • Flange spade design supports removable stud termination at #10
  • Non-Insulated barrel format supports 12-10 AWG conductor termination
  • Flange geometry improves terminal positioning during panel and equipment service
  • Electro-tin plated copper construction supports conductivity and corrosion resistance
  • Open fork design allows service without fully removing the stud fastener
  • Serrated or brazed barrel construction improves mechanical crimp retention

Technical Specifications

SKU 11760
UPC 601986117609
Brand Morris
Product Type Non-Insulated Flange Spade Terminal
Wire Range 12-10 AWG
Stud Size #10
Terminal Shape Flange Spade Terminal
Insulation Type Non-Insulated
Color Code Tin-Plated Copper
Material Electro-tin plated copper
Finish Electro-tin plated
Voltage Rating 600 V
Temperature Rating 302°F (150°C)
Amp Rating 50 amps
Barrel Design Brazed seam with serrated barrel
Key Construction Feature Wire range stamping and open metal barrel
Certifications cULus listed, RoHS
Application removable stud-mounted wire termination where flange geometry improves fork terminal positioning

Use Cases: Use this flange spade terminal for removable stud-mounted wire termination where flange geometry improves fork terminal positioning, especially where field work needs 12-10 AWG wire and a #10 stud connection.
