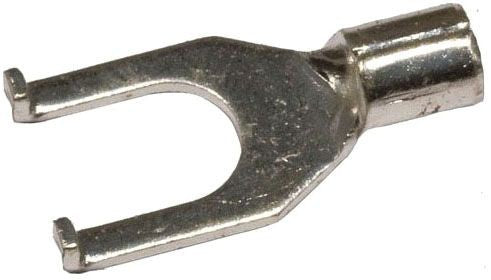

Morris 11752 Non-insulated Flange Spade Terminal 16-14 AWG #8 Stud
Morris 11752 Non-insulated Flange Spade Terminal 16-14 AWG #8 Stud
Regular price
$0.11
Regular price
Sale price
$0.11
SKU:11752
Quantity
Couldn't load pickup availability
The Morris 11752 16-14 #8 Non Ins Flange Spade is a Non-Insulated Flange Spade Terminal built for removable stud-mounted wire termination where flange geometry improves terminal positioning. It matches 16-14 AWG wire, #8 stud size, Non-Insulated insulation, 30 amps maximum current based on Morris source data.
SKU/Item Number: 11752
Key Features
- Flange spade design supports removable stud termination at #8
- Non-insulated barrel supports direct crimp inspection for 16-14 AWG conductors
- Electro-tin plated copper construction supports conductivity and corrosion resistance
- Flange geometry improves terminal positioning during service work
- Brazed seam helps prevent barrel splitting during crimp pressure
- Open fork design allows service without fully removing the stud fastener
Technical Specifications
| SKU | 11752 |
|---|---|
| UPC | 601986117524 |
| Brand | Morris |
| Product Type | Non-Insulated Flange Spade Terminal |
| Wire Range | 16-14 AWG |
| Stud Size | #8 |
| Terminal Shape | Flange Spade Terminal |
| Insulation Type | Non-Insulated |
| Color Code | Tin-Plated Copper |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 302°F (150°C) |
| Amp Rating | 30 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Wire range stamping and open metal barrel |
| Certifications | cULus listed, RoHS |
| Application | removable stud-mounted wire termination where flange geometry improves terminal positioning |
Use Cases: Use this flange spade terminal for removable stud-mounted wire termination where flange geometry improves terminal positioning, especially where field work needs 16-14 AWG wire and a #8 stud connection.
