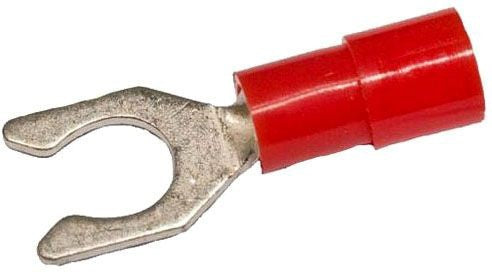

Morris 11726 Nylon Locking Spade Terminal 22-16 AWG #10 Stud
Morris 11726 Nylon Locking Spade Terminal 22-16 AWG #10 Stud
Regular price
$0.23
Regular price
Sale price
$0.23
SKU:11726
Quantity
Couldn't load pickup availability
The Morris 11726 22-16 #10 Nylon Locking Spade is a Nylon Locking Spade Terminal built for removable stud-mounted wire termination where a locking fork reduces accidental terminal separation. It matches 22-16 AWG wire, #10 stud size, Nylon insulation, 18 amps maximum current based on Morris source data.
SKU/Item Number: 11726
Key Features
- Locking spade design helps retain the fork terminal on a #10 stud
- Color-coded Nylon insulation identifies the conductor range as 22-16 AWG
- Electro-tin plated copper construction supports conductivity and corrosion resistance
- Expanded insulation entry reduces strand hang-up during crimp preparation
- Serrated barrel improves mechanical grip after crimping
- Locking fork geometry supports serviceable panel and equipment wiring
Technical Specifications
| SKU | 11726 |
|---|---|
| UPC | 601986117265 |
| Brand | Morris |
| Product Type | Nylon Locking Spade Terminal |
| Wire Range | 22-16 AWG |
| Stud Size | #10 |
| Terminal Shape | Locking Spade Terminal |
| Insulation Type | Nylon |
| Color Code | Red |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 18 amps |
| Barrel Design | Serrated barrel with expanded insulation |
| Key Construction Feature | Serrated barrel and expanded insulation |
| Certifications | UL, cUL, RoHS |
| Application | removable stud-mounted wire termination where a locking fork reduces accidental terminal separation |
Use Cases: Use this locking spade terminal for removable stud-mounted wire termination where a locking fork reduces accidental terminal separation, especially where field work needs 22-16 AWG wire and a #10 stud connection.
