Morris

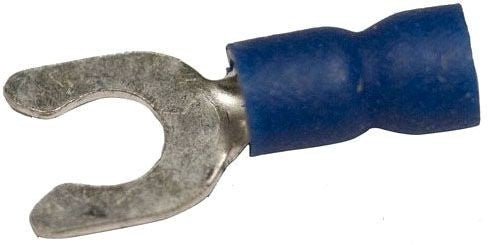

Morris 11710 Vinyl Locking Spade Terminal 16-14 AWG #8 Stud
Morris 11710 Vinyl Locking Spade Terminal 16-14 AWG #8 Stud
Regular price
$0.13
Regular price
Sale price
$0.13
SKU:11710
Quantity
Couldn't load pickup availability
The Morris 11710 16-14 #8 Vinyl Locking Spade is a Vinyl Locking Spade Terminal built for removable stud-mounted wire termination where a locking fork reduces accidental terminal separation. It matches 16-14 AWG wire, #8 stud size, Vinyl insulation, 30 amps maximum current based on Morris source data.
SKU/Item Number: 11710
Key Features
- Locking spade design helps retain the fork terminal on a #8 stud
- Color-coded Vinyl insulation identifies the conductor range as 16-14 AWG
- Electro-tin plated copper construction supports conductivity and corrosion resistance
- Expanded insulation entry reduces strand hang-up during crimp preparation
- Serrated barrel improves mechanical grip after crimping
- Locking fork geometry supports serviceable panel and equipment wiring
Technical Specifications
| SKU | 11710 |
|---|---|
| UPC | 601986117104 |
| Brand | Morris |
| Product Type | Vinyl Locking Spade Terminal |
| Wire Range | 16-14 AWG |
| Stud Size | #8 |
| Terminal Shape | Locking Spade Terminal |
| Insulation Type | Vinyl |
| Color Code | Blue |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 167°F (75°C) |
| Amp Rating | 30 amps |
| Barrel Design | Serrated barrel with expanded insulation |
| Key Construction Feature | Color-coded insulation and expanded insulation entry |
| Certifications | UL, cUL, RoHS |
| Application | removable stud-mounted wire termination where a locking fork reduces accidental terminal separation |
Use Cases: Use this locking spade terminal for removable stud-mounted wire termination where a locking fork reduces accidental terminal separation, especially where field work needs 16-14 AWG wire and a #8 stud connection.
