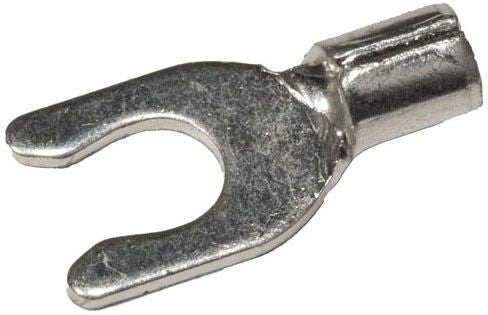

Morris 11676 Non-insulated Locking Spade Terminal 12-10 AWG #8 Stud

Morris 11676 Non-insulated Locking Spade Terminal 12-10 AWG #8 Stud

$0.18
$0.18
Sale Sold out

11676

The Morris 11676 12-10 #8 Non Ins Lock Spade is a Non-Insulated Locking Spade Terminal built for removable stud-mounted wire termination where a locking fork reduces accidental terminal separation. It matches 12-10 AWG wire, #8 stud size, Non-Insulated insulation, 50 amps maximum current based on Morris source data.

SKU/Item Number: 11676

Key Features

  • Locking fork design helps retain the terminal on a #8 stud
  • Non-insulated barrel supports direct crimp inspection for 12-10 AWG conductors
  • Electro-tin plated copper construction supports conductivity and corrosion resistance
  • Locking spade shape reduces accidental terminal separation after installation
  • Brazed seam helps prevent barrel splitting during crimp pressure
  • Wire range stamping supports quick field identification during service work

Technical Specifications

SKU 11676
UPC 601986116763
Brand Morris
Product Type Non-Insulated Locking Spade Terminal
Wire Range 12-10 AWG
Stud Size #8
Terminal Shape Locking Spade Terminal
Insulation Type Non-Insulated
Color Code Tin-Plated Copper
Material Electro-tin plated copper
Finish Electro-tin plated
Voltage Rating 600 V
Temperature Rating 302°F (150°C)
Amp Rating 50 amps
Barrel Design Brazed seam with serrated barrel
Key Construction Feature Wire range stamping and open metal barrel
Certifications cULus listed, RoHS
Application removable stud-mounted wire termination where a locking fork reduces accidental terminal separation

Use Cases: Use this locking spade terminal for removable stud-mounted wire termination where a locking fork reduces accidental terminal separation, especially where field work needs 12-10 AWG wire and a #8 stud connection.
