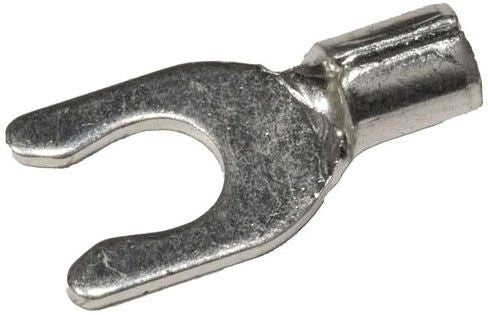

Morris 11672 Non-insulated Locking Spade Terminal 16-14 AWG #10 Stud

Morris 11672 Non-insulated Locking Spade Terminal 16-14 AWG #10 Stud

$0.18
$0.18
Sale Sold out

11672

The Morris 11672 16-14 #10 Non Ins Lock Spade is a Non-Insulated Locking Spade Terminal built for removable stud-mounted wire termination where a locking fork reduces accidental terminal separation. It matches 16-14 AWG wire, #10 stud size, Non-Insulated insulation, 30 amps maximum current based on Morris source data.

SKU/Item Number: 11672

Key Features

  • Locking fork design helps retain the terminal on a #10 stud
  • Non-insulated barrel supports direct crimp inspection for 16-14 AWG conductors
  • Electro-tin plated copper construction supports conductivity and corrosion resistance
  • Locking spade shape reduces accidental terminal separation after installation
  • Brazed seam helps prevent barrel splitting during crimp pressure
  • Wire range stamping supports quick field identification during service work

Technical Specifications

SKU 11672
UPC 601986116725
Brand Morris
Product Type Non-Insulated Locking Spade Terminal
Wire Range 16-14 AWG
Stud Size #10
Terminal Shape Locking Spade Terminal
Insulation Type Non-Insulated
Color Code Tin-Plated Copper
Material Electro-tin plated copper
Finish Electro-tin plated
Voltage Rating 600 V
Temperature Rating 302°F (150°C)
Amp Rating 30 amps
Barrel Design Brazed seam with serrated barrel
Key Construction Feature Wire range stamping and open metal barrel
Certifications cULus listed, RoHS
Application removable stud-mounted wire termination where a locking fork reduces accidental terminal separation

Use Cases: Use this locking spade terminal for removable stud-mounted wire termination where a locking fork reduces accidental terminal separation, especially where field work needs 16-14 AWG wire and a #10 stud connection.
