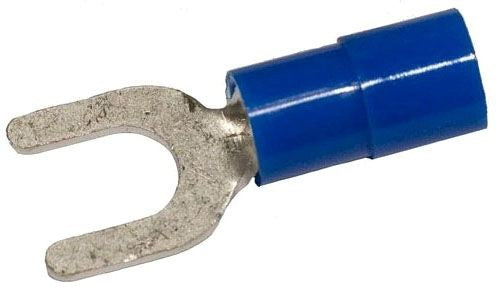

Morris 11646 Nylon Spade Terminal 6 AWG 1/4 In Stud
Morris 11646 Nylon Spade Terminal 6 AWG 1/4 In Stud
Regular price
$1.64
Regular price
Sale price
$1.64
SKU:11646
Quantity
Couldn't load pickup availability
The Morris 11646 6 Awg 1/4 Nylon Spade is a Nylon Spade Terminal built for removable stud-mounted wire termination in terminal blocks, control panels, and service equipment. It matches 6 AWG wire, 1/4 in stud size, Nylon insulation, 95 amps maximum current based on Morris source data.
SKU/Item Number: 11646
Key Features
- Nylon insulated fork spade supports removable stud termination at 1/4 in
- Color-coded nylon insulation identifies the conductor range as 6 AWG
- Electro-tin plated copper construction supports conductivity and corrosion resistance
- Expanded insulation entry reduces strand hang-up during conductor insertion
- Serrated barrel improves mechanical grip after crimping
- Open fork design supports faster service on terminal blocks and control panels
Technical Specifications
| SKU | 11646 |
|---|---|
| UPC | 601986116466 |
| Brand | Morris |
| Product Type | Nylon Spade Terminal |
| Wire Range | 6 AWG |
| Stud Size | 1/4 in |
| Terminal Shape | Spade Terminal |
| Insulation Type | Nylon |
| Color Code | Nylon Color Code |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 95 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Serrated barrel and expanded insulation |
| Certifications | UL, cUL, RoHS |
| Application | removable stud-mounted wire termination in terminal blocks, control panels, and service equipment |
Use Cases: Use this spade terminal for removable stud-mounted wire termination in terminal blocks, control panels, and service equipment, especially where field work needs 6 AWG wire and a 1/4 in stud connection.
