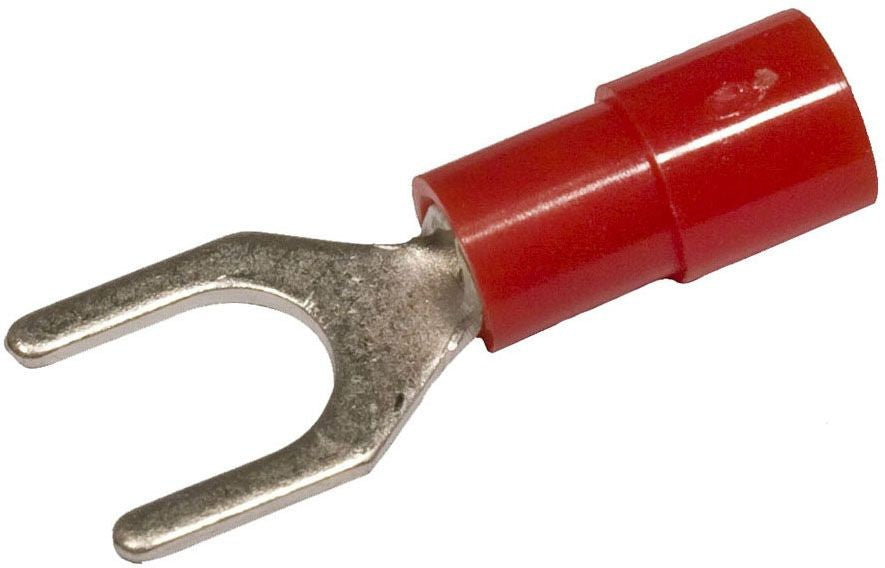

Morris 11616 Nylon Spade Terminal 22-16 AWG #8 Stud
Morris 11616 Nylon Spade Terminal 22-16 AWG #8 Stud
Regular price
$0.22
Regular price
Sale price
$0.22
SKU:11616
Quantity
Couldn't load pickup availability
The Morris 11616 22-16 #8 Nylon Spade is a Nylon Spade Terminal built for removable stud-mounted wire termination in terminal blocks, control panels, and service equipment. It matches 22-16 AWG wire, #8 stud size, Nylon insulation, 18 amps maximum current based on Morris source data.
SKU/Item Number: 11616
Key Features
- Nylon insulated spade terminal supports removable stud termination at #8
- Color-coded nylon insulation identifies the conductor range as 22-16 AWG
- Electro-tin plated copper construction supports conductivity and corrosion resistance
- Expanded insulation entry reduces strand hang-up during conductor insertion
- Serrated barrel improves mechanical grip after crimping
- Open fork design supports faster service on terminal blocks and control panels
Technical Specifications
| SKU | 11616 |
|---|---|
| UPC | 601986116169 |
| Brand | Morris |
| Product Type | Nylon Spade Terminal |
| Wire Range | 22-16 AWG |
| Stud Size | #8 |
| Insulation Type | Nylon |
| Color Code | Red |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 18 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Serrated barrel and expanded insulation |
| Certifications | UL, cUL, RoHS |
| Application | removable stud-mounted wire termination in terminal blocks, control panels, and service equipment |
Use Cases: Use this spade terminal for removable stud-mounted wire termination in terminal blocks, control panels, and service equipment, especially where the installation requires 22-16 AWG wire and a #8 stud connection.
