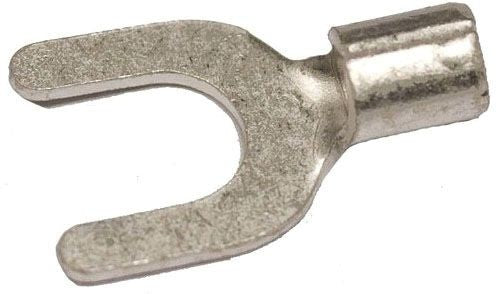

Morris 11534 Non-insulated Spade Terminal 12-10 AWG #8 Stud
Morris 11534 Non-insulated Spade Terminal 12-10 AWG #8 Stud
Regular price
$0.18
Regular price
Sale price
$0.18
SKU:11534
Quantity
Couldn't load pickup availability
The Morris 11534 12-10 #8 Non Ins Spade is a Non-Insulated Spade Terminal built for removable stud-mounted wire termination in terminal blocks, control panels, and service equipment. It matches 12-10 AWG wire, #8 stud size, Non-Insulated insulation, 50 amps maximum current based on Morris source data.
SKU/Item Number: 11534
Key Features
- Fork spade design supports removable stud termination at #8
- Non-insulated barrel supports direct crimp inspection for 12-10 AWG conductors
- Electro-tin plated copper construction supports conductivity and corrosion resistance
- Open fork design allows installation without fully removing the stud fastener
- Brazed seam helps prevent barrel splitting during crimp pressure
- Wire range stamping supports quick field identification during panel work
Technical Specifications
| SKU | 11534 |
|---|---|
| UPC | 601986115346 |
| Brand | Morris |
| Product Type | Non-Insulated Spade Terminal |
| Wire Range | 12-10 AWG |
| Stud Size | #8 |
| Insulation Type | Non-Insulated |
| Color Code | Tin-Plated Copper |
| Material | Copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 302°F (150°C) |
| Amp Rating | 50 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Wire range stamped on terminal surface |
| Certifications | cULus listed, RoHS |
| Application | removable stud-mounted wire termination in terminal blocks, control panels, and service equipment |
Use Cases: Use this spade terminal for removable stud-mounted wire termination in terminal blocks, control panels, and service equipment, especially where the installation requires 12-10 AWG wire and a #8 stud connection.
