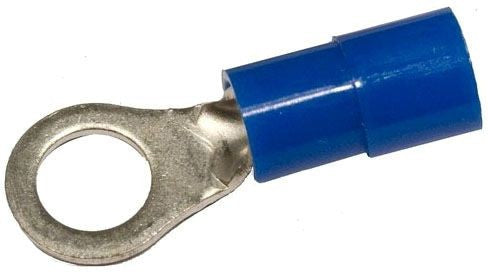

Morris 11338 Nylon Ring Terminal 16-14 AWG #8 Stud
Morris 11338 Nylon Ring Terminal 16-14 AWG #8 Stud
Regular price
$0.25
Regular price
Sale price
$0.25
SKU:11338
Quantity
Couldn't load pickup availability
The Morris 11338 16-14 #8 Nylon Ins Ring Term is a Nylon Ring Terminal built for stud-mounted wire termination in panels, terminal blocks, control cabinets, grounding assemblies, and equipment wiring. It matches 16-14 AWG wire, #8 stud size, Nylon insulation, 30 amps maximum current based on Morris source data.
SKU/Item Number: 11338
Key Features
- Nylon insulated ring terminal supports a secure stud connection at #8
- Color-coded nylon insulation identifies the conductor range as 16-14 AWG
- Electro-tin plated copper construction supports conductivity and corrosion resistance
- Brazed seam helps prevent barrel splitting during crimp pressure
- Serrated barrel improves mechanical grip after crimping
- Expanded insulation entry reduces strand hang-up during conductor insertion
Technical Specifications
| SKU | 11338 |
|---|---|
| UPC | 601986113380 |
| Brand | Morris |
| Product Type | Nylon Ring Terminal |
| Wire Range | 16-14 AWG |
| Stud Size | #8 |
| Insulation Type | Nylon |
| Insulation Material | Nylon |
| Color Code | Blue |
| Material | Electro-tin plated copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 30 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Serrated barrel and expanded insulation |
| Certifications | UL, cUL, RoHS |
| Application | stud-mounted wire termination in panels, terminal blocks, control cabinets, grounding assemblies, and equipment wiring |
Use Cases: Use this ring terminal for stud-mounted wire termination in panels, terminal blocks, control cabinets, grounding assemblies, and equipment wiring, especially where the installation requires 16-14 AWG wire and a #8 stud connection.
