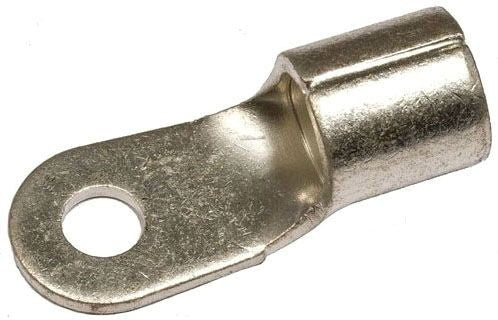

Morris 11120 Non-insulated Ring Terminal 2 AWG 1/4 In Stud
Morris 11120 Non-insulated Ring Terminal 2 AWG 1/4 In Stud
Regular price
$2.02
Regular price
Sale price
$2.02
SKU:11120
Quantity
Couldn't load pickup availability
The Morris 11120 2awg 1/4 Non Ins Ring Term is a Non-Insulated Ring Terminal built for stud-mounted wire termination in panels, terminal blocks, control cabinets, grounding assemblies, and equipment wiring. It matches 2 AWG wire, 1/4 in stud size, Non-Insulated insulation, 170 amps maximum current based on Morris source data.
SKU/Item Number: 11120
Key Features
- Non-insulated ring terminal supports a secure stud connection at 1/4 in
- Open metal barrel supports direct crimp inspection for 2 AWG conductors
- High-strength copper body supports electrical conductivity
- Electro-tin plated surface helps resist corrosion at the termination point
- Brazed seam helps prevent splitting under crimp pressure
- Wire range stamping supports fast field identification during panel or equipment work
Technical Specifications
| SKU | 11120 |
|---|---|
| UPC | 601986111201 |
| Brand | Morris |
| Product Type | Non-Insulated Ring Terminal |
| Wire Range | 2 AWG |
| Stud Size | 1/4 in |
| Insulation Type | Non-Insulated |
| Insulation Material | None |
| Color Code | Tin-Plated Copper |
| Material | Copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 302°F (150°C) |
| Amp Rating | 170 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Wire range stamped on terminal surface |
| Certifications | cULus listed, RoHS |
| Application | stud-mounted wire termination in panels, terminal blocks, control cabinets, grounding assemblies, and equipment wiring |
Use Cases: Use this ring terminal for stud-mounted wire termination in panels, terminal blocks, control cabinets, grounding assemblies, and equipment wiring, especially where the installation requires 2 AWG wire and a 1/4 in stud connection.
