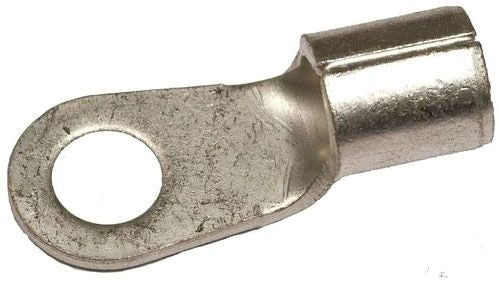

Morris 11104 Non-insulated Ring Terminal 4 AWG #8 Stud
Morris 11104 Non-insulated Ring Terminal 4 AWG #8 Stud
Regular price
$1.49
Regular price
Sale price
$1.49
SKU:11104
Quantity
Couldn't load pickup availability
The Morris 11104 4awg #8 Non Ins Ring Term is a Non-Insulated Ring Terminal built for stud-mounted wire termination in panels, terminal blocks, control cabinets, grounding assemblies, and equipment wiring. It matches 4 AWG wire, #8 stud size, Non-Insulated insulation, 125 amps maximum current based on Morris source data.
SKU/Item Number: 11104
Key Features
- Non-insulated ring terminal supports a secure stud connection at #8
- Open metal barrel supports direct crimp inspection for 4 AWG conductors
- High-strength copper body supports electrical conductivity
- Electro-tin plated surface helps resist corrosion at the termination point
- Brazed seam helps prevent splitting under crimp pressure
- Wire range stamping supports fast field identification during panel or equipment work
Technical Specifications
| SKU | 11104 |
|---|---|
| UPC | 601986111041 |
| Brand | Morris |
| Product Type | Non-Insulated Ring Terminal |
| Wire Range | 4 AWG |
| Stud Size | #8 |
| Insulation Type | Non-Insulated |
| Insulation Material | None |
| Color Code | Tin-Plated Copper |
| Material | Copper |
| Finish | Electro-tin plated |
| Voltage Rating | 600 V |
| Temperature Rating | 302°F (150°C) |
| Amp Rating | 125 amps |
| Barrel Design | Brazed seam with serrated barrel |
| Key Construction Feature | Wire range stamped on terminal surface |
| Certifications | cULus listed, RoHS |
| Application | stud-mounted wire termination in panels, terminal blocks, control cabinets, grounding assemblies, and equipment wiring |
Use Cases: Use this ring terminal for stud-mounted wire termination in panels, terminal blocks, control cabinets, grounding assemblies, and equipment wiring, especially where the installation requires 4 AWG wire and a #8 stud connection.
