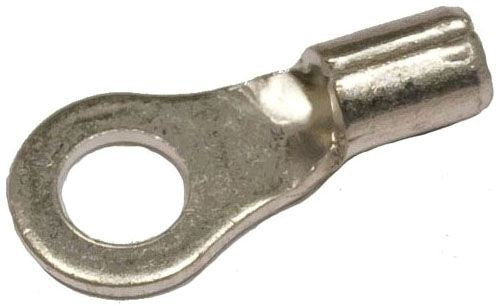

Morris 11058 Non-insulated Ring Terminal 12-10 AWG #8 Stud
Morris 11058 Non-insulated Ring Terminal 12-10 AWG #8 Stud
Regular price
$0.23
Regular price
Sale price
$0.23
SKU:11058
Quantity
Couldn't load pickup availability
The Morris 11058 12-10 #8 Non Ins Ring Term is a Non-Insulated Ring Terminal built for stud-mounted wire termination in panels, terminal blocks, control cabinets, and equipment wiring. It matches 12-10 AWG wire, #8 stud size based on Morris source data.
SKU/Item Number: 11058
Key Features
- Closed ring design supports a secure stud connection at #8
- Non-insulated barrel supports direct crimp inspection for 12-10 AWG conductors
- Tin-plated copper construction supports electrical conductivity and corrosion resistance
- Ring terminal format reduces accidental disconnection after the stud fastener is tightened
- Catalog-based SKU structure supports exact replacement and replenishment
- Source-backed terminal data supports panel, equipment, and control-cabinet selection
Technical Specifications
| SKU | 11058 |
|---|---|
| UPC | 601986110587 |
| Brand | Morris |
| Product Type | Non-Insulated Ring Terminal |
| Wire Range | 12-10 AWG |
| Stud Size | #8 |
| Insulation Type | Non-Insulated |
| Color/Finish | Tin-Plated Copper |
| Material | Copper |
| Finish | Electro-tin plated |
| Amp Rating | 50 amps |
| Barrel Design | Non-insulated crimp barrel |
| Connection Type | Stud-mounted ring terminal |
| Application | stud-mounted wire termination in panels, terminal blocks, control cabinets, and equipment wiring |
Use Cases: Use this ring terminal for stud-mounted wire termination in panels, terminal blocks, control cabinets, and equipment wiring, especially where the installation requires 12-10 AWG wire and a #8 stud connection.
