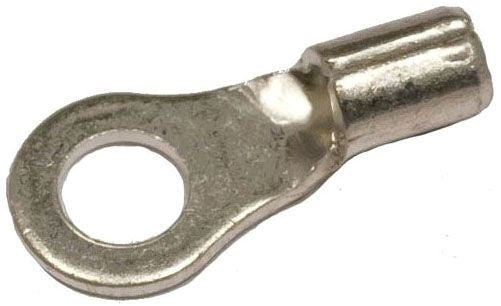

Morris 11038 Non-insulated Ring Terminal 16-14 AWG #8 Stud
Morris 11038 Non-insulated Ring Terminal 16-14 AWG #8 Stud
Regular price
$0.11
Regular price
Sale price
$0.11
SKU:11038
Quantity
Couldn't load pickup availability
The Morris 11038 16-14 #8 Non Ins Ring Term is a Non-Insulated Ring Terminal built for stud-mounted wire termination in panels, terminal blocks, control cabinets, and equipment wiring. It matches 16-14 AWG wire, #8 stud size based on Morris source data.
SKU/Item Number: 11038
Key Features
- Closed ring design supports a secure stud connection at #8
- Non-insulated barrel supports direct crimp inspection for 16-14 AWG conductors
- Tin-plated copper construction supports electrical conductivity and corrosion resistance
- Ring terminal format reduces accidental disconnection after the stud fastener is tightened
- Catalog-based SKU structure supports exact replacement and replenishment
- Source-backed terminal data supports panel, equipment, and control-cabinet selection
Technical Specifications
| SKU | 11038 |
|---|---|
| UPC | 601986110389 |
| Brand | Morris |
| Product Type | Non-Insulated Ring Terminal |
| Wire Range | 16-14 AWG |
| Stud Size | #8 |
| Insulation Type | Non-Insulated |
| Color/Finish | Tin-Plated Copper |
| Material | Copper |
| Finish | Electro-tin plated |
| Amp Rating | 30 amps |
| Barrel Design | Non-insulated crimp barrel |
| Connection Type | Stud-mounted ring terminal |
| Application | stud-mounted wire termination in panels, terminal blocks, control cabinets, and equipment wiring |
Use Cases: Use this ring terminal for stud-mounted wire termination in panels, terminal blocks, control cabinets, and equipment wiring, especially where the installation requires 16-14 AWG wire and a #8 stud connection.
