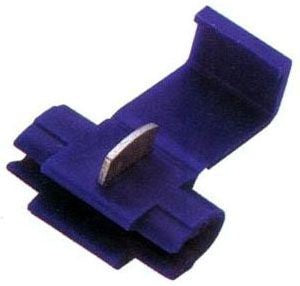

Morris 10774 Quick Splice Connector 18-14 AWG
Morris 10774 Quick Splice Connector 18-14 AWG
Regular price
$0.23
Regular price
Sale price
$0.23
SKU:10774
Quantity
Couldn't load pickup availability
The Morris 10774 18-14 Quick Splice Connector is a Quick Splice Connector built for quick insulation-displacement splicing with no wire stripping in electrical repair and control wiring. It matches 18-14 AWG wire, Pre-Insulated insulation based on Morris source data.
SKU/Item Number: 10774
Key Features
- Quick splice connector supports 18-14 AWG tap connections
- Pre-insulated IDC design eliminates wire stripping for fast field splicing
- Metal insulation-displacement tab cuts through insulation when squeezed with pliers
- Polypropylene housing supports a stable insulated connector body
- Electro-tin plated brass contact supports electrical continuity
- Snap-cover design helps retain the completed splice connection
Technical Specifications
| SKU | 10774 |
|---|---|
| UPC | 601986107747 |
| Brand | Morris |
| Product Type | Quick Splice Connector |
| Wire Range | 18-14 AWG |
| Connector Style | Pre-insulated insulation displacement connector |
| Housing Material | Polypropylene |
| Contact Material | Electro-tin plated brass |
| Voltage Rating | 600 V |
| Temperature Rating | 221°F (105°C) |
| Application | quick insulation-displacement splicing with no wire stripping in electrical repair and control wiring |
| Source URL | https://morrisproducts.com/images/10772-10777-Spec.pdf |
Use Cases: Use this connector for quick insulation-displacement splicing with no wire stripping in electrical repair and control wiring, especially where the splice requires 18-14 AWG conductors and no wire stripping.
