Morris

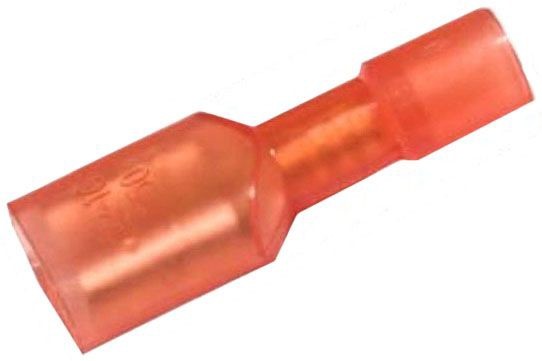

Morris 10411 Nylon Fully Insulated Female Disconnect 22-16 AWG .250 X .032 In Tab
Morris 10411 Nylon Fully Insulated Female Disconnect 22-16 AWG .250 X .032 In Tab
Regular price
$0.32
Regular price
Sale price
$0.32
SKU:10411
Quantity
Couldn't load pickup availability
The Morris 10411 22-16 .250x.032 Fully Ins Fem is a Nylon Fully Insulated Female Disconnect built for quick-disconnect female wire termination for serviceable electrical equipment connections. It matches 22-16 AWG wire, .250 x .032 in tab, Nylon Fully Insulated insulation based on Morris source data.
SKU/Item Number: 10411
Key Features
- Fully insulated female disconnect covers the terminal interface around a .250 x .032 in tab
- Color-coded nylon insulation identifies the conductor range as 22-16 AWG
- High-strength brass body supports dependable electrical contact
- Electro-tin plating helps resist corrosion on the contact surface
- Easy-entry expanded insulation reduces strand hang-up during crimping
- Wire range stamping supports field identification during service work
Technical Specifications
| SKU | 10411 |
|---|---|
| UPC | 601986104111 |
| Brand | Morris |
| Product Type | Nylon Fully Insulated Female Disconnect |
| Wire Range | 22-16 AWG |
| Tab Size | .250 x .032 in |
| Gender | Female |
| Insulation Type | Nylon Fully Insulated |
| Color Code | Red |
| Material | High-strength brass |
| Finish | Electro-tin plated |
| Voltage Rating | 300 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 10 amps |
| Barrel Design | Butted seam with serrated barrel |
| Certifications | UL, cUL, RoHS |
| Application | quick-disconnect female wire termination for serviceable electrical equipment connections |
| Source URL | https://morrisproducts.com/images/10411B-Spec.pdf |
Use Cases: Use this disconnect for quick-disconnect female wire termination for serviceable electrical equipment connections, especially where the installation requires a .250 x .032 in quick-disconnect tab and 22-16 AWG wire.
