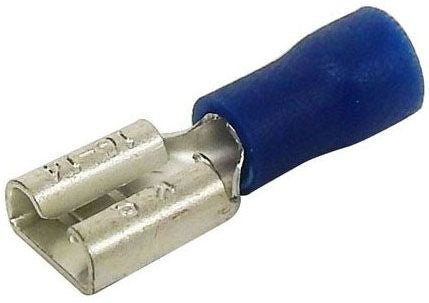

Morris 10323 Vinyl Female Disconnect 16-14 AWG .032 X .187 In Tab
Morris 10323 Vinyl Female Disconnect 16-14 AWG .032 X .187 In Tab
Regular price
$0.14
Regular price
Sale price
$0.14
SKU:10323
Quantity
Couldn't load pickup availability
The Morris 10323 16-14 .032x.187 Vinyl Fem is a Vinyl Female Disconnect built for quick-disconnect female wire termination for serviceable electrical equipment connections. It matches 16-14 AWG wire, .032 x .187 in tab, Vinyl insulation based on Morris source data.
SKU/Item Number: 10323
Key Features
- Female quick-disconnect design supports serviceable terminal pairing with a .032 x .187 in tab
- Color-coded insulation identifies the conductor range as 16-14 AWG
- Vinyl insulation supports the listed terminal construction
- Electro-tin plated brass contact helps resist corrosion
- Butted seam and serrated barrel improve mechanical grip after crimping
- Tab-size matching supports accurate disconnect selection
Technical Specifications
| SKU | 10323 |
|---|---|
| UPC | 601986103237 |
| Brand | Morris |
| Product Type | Vinyl Female Disconnect |
| Wire Range | 16-14 AWG |
| Tab Size | .032 x .187 in |
| Gender | Female |
| Insulation Type | Vinyl |
| Color Code | Blue |
| Material | High-strength brass |
| Finish | Electro-tin plated |
| Voltage Rating | 300 V |
| Temperature Rating | 167°F (75°C) |
| Amp Rating | 15 amps |
| Barrel Design | Butted seam with serrated barrel |
| Certifications | UL, cUL, RoHS |
| Application | quick-disconnect female wire termination for serviceable electrical equipment connections |
| Source URL | https://morrisproducts.com/images/10323-Spec.pdf |
Use Cases: Use this disconnect for quick-disconnect female wire termination for serviceable electrical equipment connections, especially where the installation requires a .032 x .187 in quick-disconnect tab and 16-14 AWG wire.
