Morris

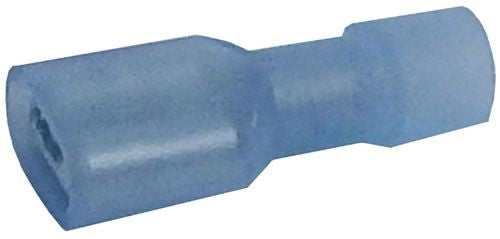

Morris 01412 Nylon Insulated Female Disconnect 16-14 AWG .250 X .032 In Tab
Morris 01412 Nylon Insulated Female Disconnect 16-14 AWG .250 X .032 In Tab
Regular price
$0.31
Regular price
Sale price
$0.31
SKU:01412
Quantity
Couldn't load pickup availability
The Morris 01412 16-14 .250x.032 Nyl Fem Small Pack is a Nylon Insulated Female Disconnect built for quick-disconnect female wire termination for serviceable electrical equipment connections. It matches 16-14 AWG conductors, .250 x .032 in tab size, Nylon insulation based on Morris specification data.
SKU/Item Number: 01412
Key Features:
- Female quick-disconnect design supports serviceable terminal pairing
- Tab size .250 x .032 in supports matched disconnect connection
- Conductor range 16-14 AWG supports correct crimp selection
- Nylon insulation supports the listed terminal construction
- Electro-tin plating helps resist corrosion on the connection surface
- Butted seam and serrated barrel improve mechanical grip after crimping
Technical Specifications:
| SKU | 01412 |
|---|---|
| UPC | 601986014120 |
| Brand | Morris |
| Product Type | Nylon Insulated Female Disconnect |
| Wire Range | 16-14 AWG |
| Tab Size | .250 x .032 in |
| Gender | Female |
| Insulation Type | Nylon |
| Color Code | Blue |
| Material | High-strength brass |
| Finish | Electro-tin plated |
| Voltage Rating | 300 V |
| Temperature Rating | 221°F (105°C) |
| Amp Rating | 15 amps |
| Flammability Rating | UL94V-0 |
| Barrel Design | Butted seam with serrated barrel |
| Certifications | UL, cUL, RoHS |
| Application | quick-disconnect female wire termination for serviceable electrical equipment connections |
| Source URL | https://morrisproducts.com/images/01412-Spec.pdf |
Use Cases: Use this disconnect for quick-disconnect female wire termination for serviceable electrical equipment connections, especially where equipment wiring requires a .250 x .032 in quick-disconnect tab.
