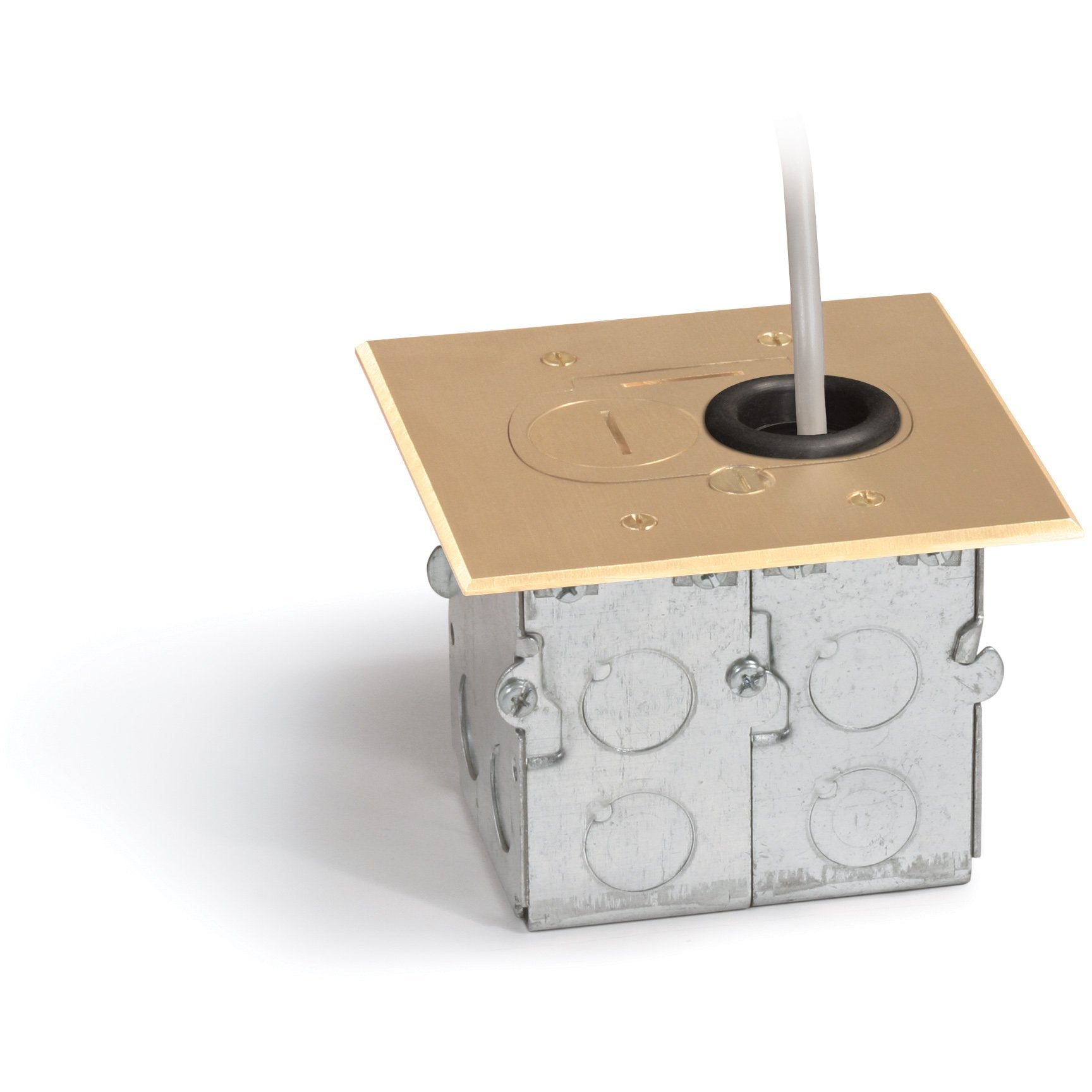

Lew Electric RCFB-1 Single Gang Brass Recessed Floor Box, 15A TR

Lew Electric RCFB-1 is a single gang, recessed drop-in floor box fitted with a UL Listed 15A tamper-resistant duplex receptacle and a hybrid brass flip-lid cover. Cords drop into the box and exit low through the screw-plug openings, keeping plugs below the floor surface for a low-profile finish. The box is part of Lew's POWERDEN residential line and ships ready to wire.

Key Features

• Hybrid brass cover with two 1-1/4 inch screw plugs lets cords exit low so plugs sit below the floor and out of foot traffic
• Recessed drop-in design removes the trip hazard of a raised floor outlet
• Watertight screw plugs and a 1/16 inch neoprene gasket seal the cover against spills and mopping
• Receptacle swaps for the included RRP-2-PQ quad device, so the box converts to comm/data with keystone jacks
• Rubber grommets protect cords at the cover openings during permanent plug-in use
• Brass cover provides a durable finished surface that suits warm-toned floors

Technical Specifications

Applications

Common applications include:

• Living rooms, dens, and home offices needing a floor outlet away from walls
• Residential floors where a low-profile, concealed-plug outlet is preferred
• New construction or finished-floor retrofit using the drop-in box
• Locations needing combined power and low-voltage data via the RRP-2-PQ option

Compatibility and Installation Notes

Verify the floor cutout suits the drop-in box footprint, and confirm whether the opening will carry power, low-voltage data, or both so the receptacle or RRP-2-PQ data device is set before pour or finish.

Lumera Electric carries the Lew Electric RCFB-1 for residential installs that need a concealed-plug brass floor box with an optional data device.
