Lew Electric CF-1101-DFB Single Gang Brass Carpet Flange, 1100 Series
Lew Electric CF-1101-DFB Single Gang Brass Carpet Flange, 1100 Series
SKU:CF-1101-DFB
Couldn't load pickup availability

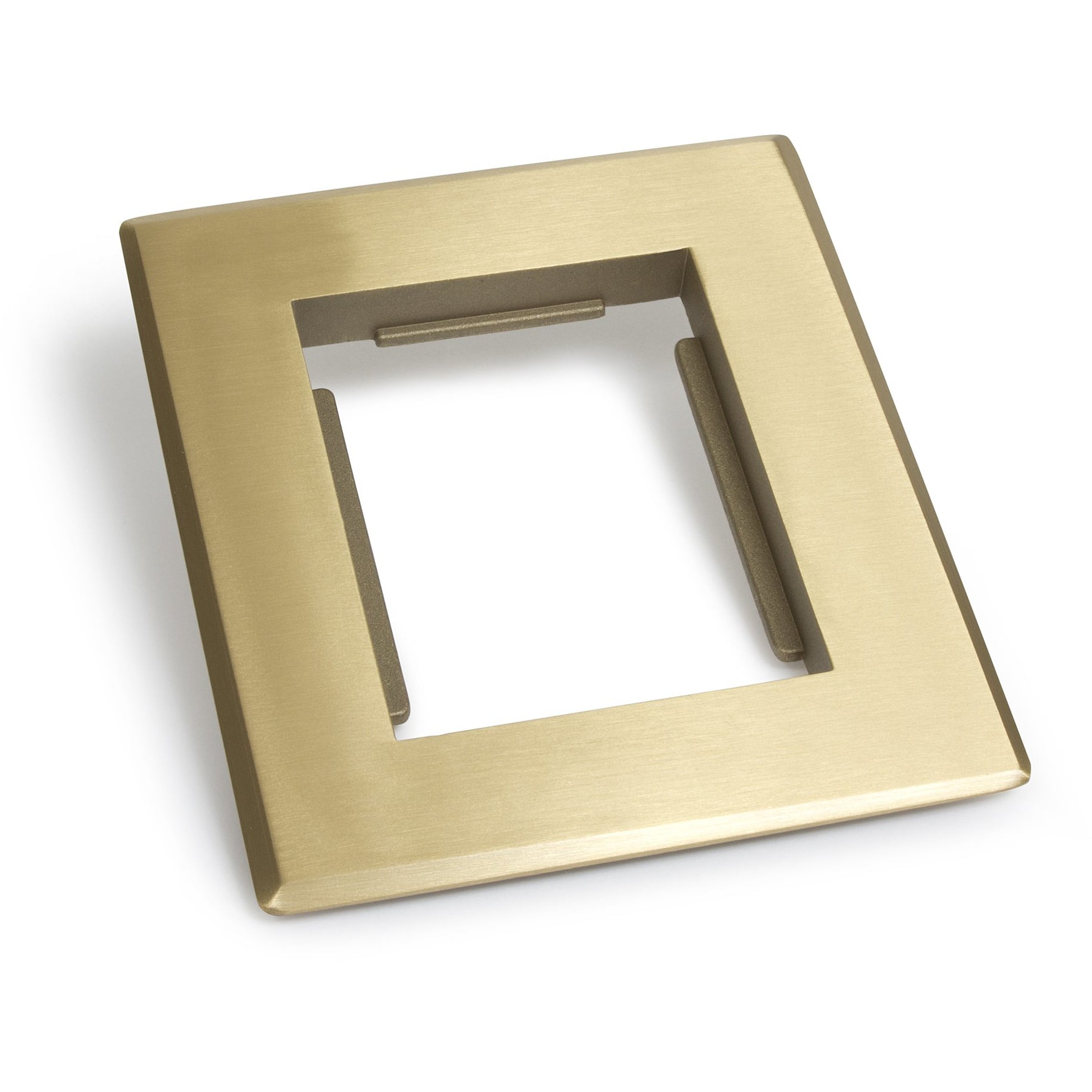

Lew Electric CF-1101-DFB single gang carpet flange is machined from solid brass and trims out 1100 Series floor boxes, raising the box opening by 3/8 inch to clear carpet and padding. The flange measures 6.25 by 5.33 inches and overhangs the box edge by roughly 1.04 inches for a finished transition in carpeted commercial interiors.
Key Features
- Solid brass face gives a finished, corrosion-resistant transition between the floor box and carpet
- Adds height to the box opening so carpet and padding seat flush instead of bunching against the cover
- Wide flange overhang conceals the rough floor cutout for a clean installed look
- Ships with brass mounting screws, so it installs without sourcing extra hardware
- Dimensioned for 1100 Series boxes to keep the device opening aligned after carpet is laid
Technical Specifications
| Brand | Lew Electric |
|---|---|
| Model / SKU | CF-1101-DFB |
| Item Number | CF-1101-DFB |
| UPC | 784149211724 |
| Product Type | Carpet Flange |
| Product Series | 1100 Series |
| Material | Brass |
| Gang | Single |
| Compatible Floor Box Series | 1100 Series |
| Added Height | 3/8 in (for carpet and padding) |
| Flange Dimensions | 6.25 in x 5.33 in |
| Edge Overhang | 1.04 in |
| Mounting Hardware | Brass screws included |
| Application | Commercial |
Applications
Common applications include:
- Carpeted commercial floors finished over 1100 Series floor boxes
- Office and conference spaces where a floor outlet meets carpet
- Retrofit trim-out when carpet is added over an existing 1100 Series box
Compatibility and Installation Notes
Confirm the floor box is a 1100 Series rectangular box before ordering, and check that the finished carpet plus padding thickness suits the 3/8 inch added height this flange provides.
Lumera Electric stocks the Lew Electric CF-1101-DFB for contractors trimming 1100 Series floor boxes into carpeted commercial interiors.
