Intermatic

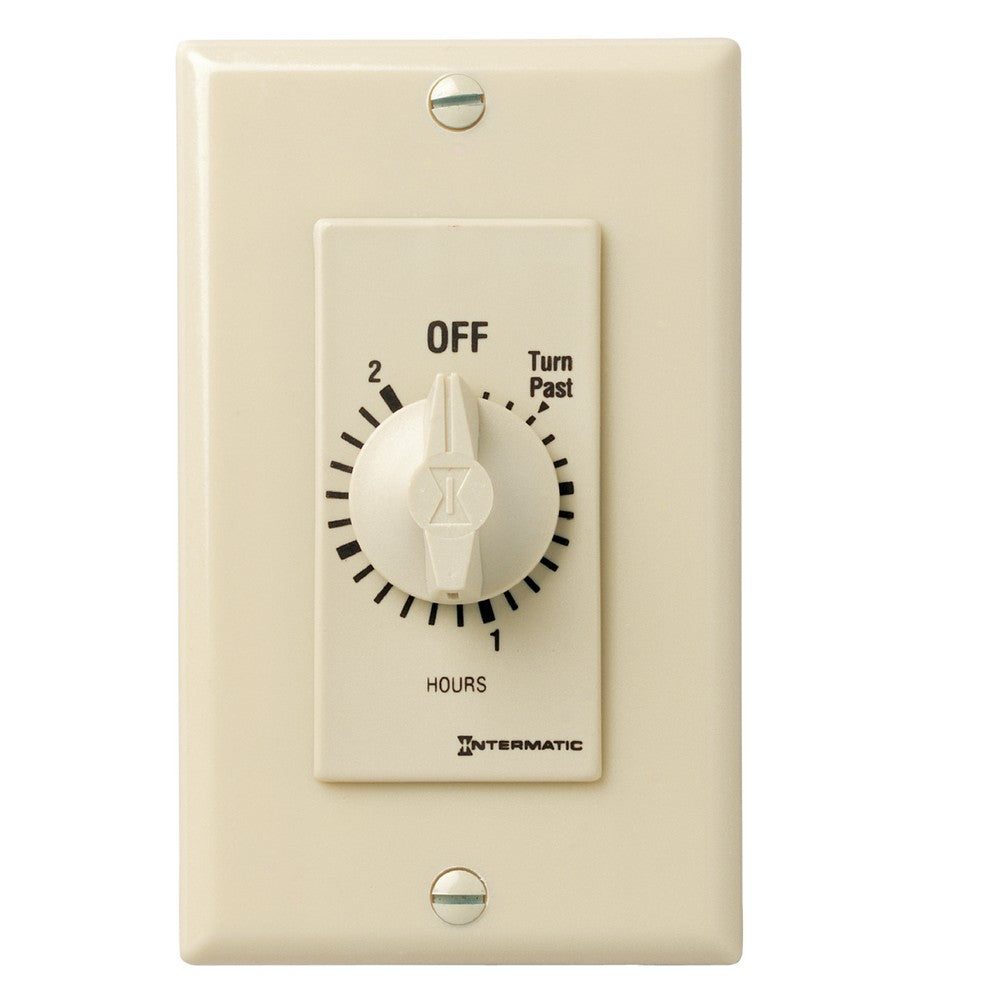

Intermatic 125-277 VAC 2 Hour Max 50/60 Hz Ivory Decorator Spring Wound Countdown Timer FD2H
Intermatic 125-277 VAC 2 Hour Max 50/60 Hz Ivory Decorator Spring Wound Countdown Timer FD2H
SKU:FD2H
Couldn't load pickup availability
Product Overview
The Intermatic FD2H is a decorator spring wound countdown timer used for scheduled load control for lighting, fans, motors, appliances, or equipment where timer duration and voltage must match the installation. The manufacturer data lists category code FD, UPC 078275073999, unit weight 0.299 lb, voltage 125-277 VAC, frequency 50/60 Hz, and timer duration 2 Hour Max.
Key Features
- Model FD2H supports exact Intermatic catalog matching and reorder workflows
- UPC 078275073999 is included for barcode receiving and purchasing records
- Product category code FD supports distributor catalog grouping
- Voltage rating is listed as 125-277 VAC
- Frequency is listed as 50/60 Hz
- Timer duration is listed as 2 Hour Max
- Switching configuration is listed as SPST
Technical Specifications
| Brand | Intermatic |
| Model / SKU | FD2H |
| Product Type | Decorator Spring Wound Countdown Timer |
| Original Product Description | Spring Wound Countdown Timer, Decorator Style, 125-277 VAC, 50/60 Hz, SPST, 2 Hour Max, Without Hold, Ivory |
| Voltage | 125-277 VAC |
| Frequency | 50/60 Hz |
| Timer Duration | 2 Hour Max |
| Switching Configuration | SPST |
| Hold Function | Without Hold |
| Finish | Ivory |
| UPC | 078275073999 |
| Manufacturer Part Number | FD2H |
| Product Category Code | FD |
| Master Pack Qty | 6 |
| Master Pack Weight | 1.794 lb |
| Unit Weight | 0.299 lb |
| Pallet Qty | 1200 |
| Pallet Weight | 358.8 lb |
Applications
- Scheduled load control
- Fan control
- Lighting control
- Equipment control
- Facility maintenance
- Replacement projects
Compatibility and Installation Notes
Confirm the model number, UPC, voltage where listed, amperage where listed, mounting style, device configuration, finish, and local code requirements before installation. Electrical products should be selected and installed by a qualified professional according to the application and authority having jurisdiction.
Best Buy Electric organizes Intermatic product data for contractor-ready sourcing, clean reordering, and practical product comparison across electrical control, lighting control, and maintenance applications.
