EnVision

EnVision LED-DL-SQ-4-9W-5CCT-UNV-0/10V – RDL-Line

Name: EnVision LED-DL-SQ-4-9W-5CCT-UNV-0/10V – RDL-Line
Brand: EnVision
SKU: LED-DL-SQ-4-9W-5CCT-UNV-0/10V
Price: 36.4 USD
Availability: InStock

$36.40

Sale Sold out

SKU:LED-DL-SQ-4-9W-5CCT-UNV-0/10V

Found it lower? We will beat it by 5% of the Difference.

Download Spec Sheet (PDF)

Product Overview

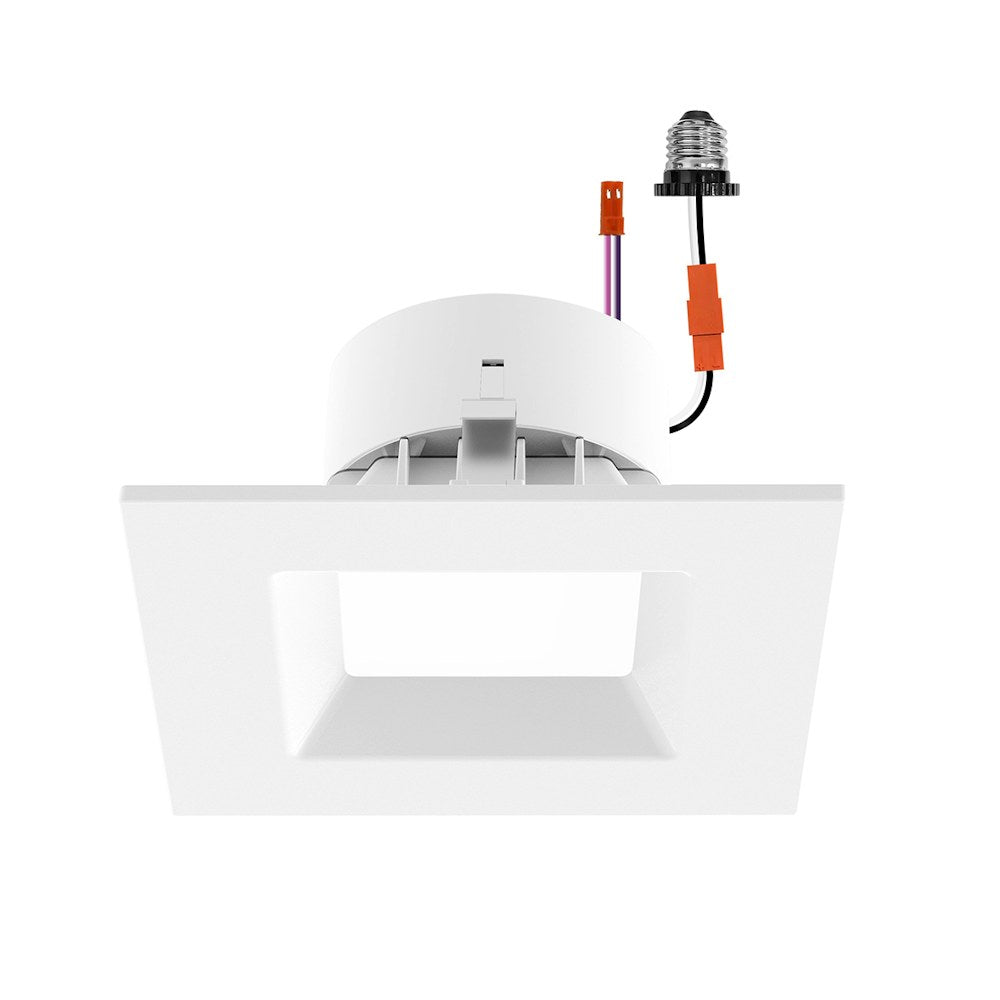

The EnVision RDL-Line (LED-DL-SQ-4-9W-5CCT-UNV-0/10V) is a commercial-grade led downlight delivering 9w, 765 lm, Selectable 27/30/35/40/50K. Engineered for reliable performance and easy specification.

Key Features

Wattage: 9w
Lumens: 765 lm
Color Temperature: Selectable 27/30/35/40/50K
Voltage: 120-277V
Dimming: 0-10V
CRI: >90
IP Rating: Wet Location
Beam: 100°
Finish: White
Listing/Warranty: ETL/ ES/ JA8/ 5 Years

Technical Specifications

Brand	EnVision
Model / SKU	LED-DL-SQ-4-9W-5CCT-UNV-0/10V
Type	LED Downlight
Wattage	9w
Lumens	765 lm
Color Temperature	Selectable 27/30/35/40/50K
Voltage	120-277V
Dimming	0-10V
CRI	>90
IP Rating	Wet Location
Beam Angle	100°
Finish	White
Size	4"
Box Qty	60
Certification / Warranty	ETL/ ES/ JA8/ 5 Years
UPC	810143716320
ES/DLC ID	PENDING 2/2025

Lumera Electric supplies genuine EnVision commercial LED lighting with full manufacturer specifications and competitive project pricing.
